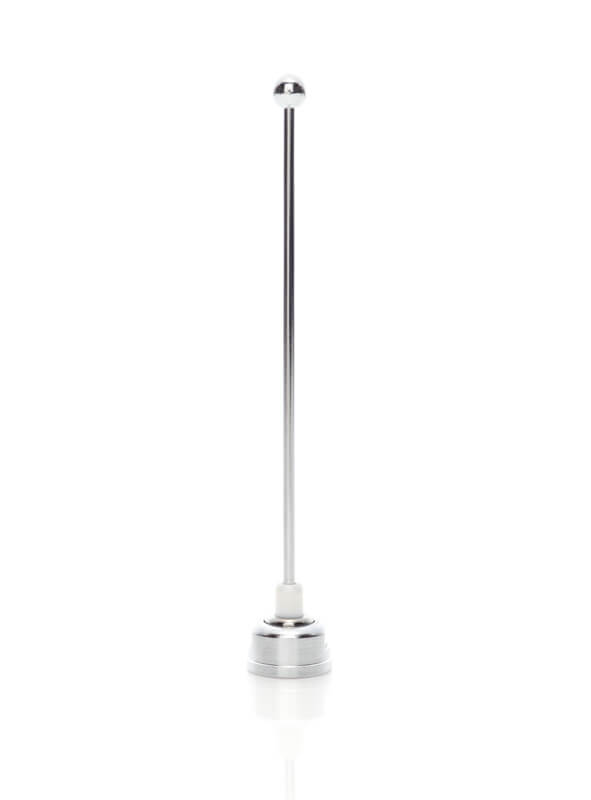

AV-15

The AV-15 is used with aviation, land mobile radio, and flight phone bands. The durably constructed chrome-plated phosphor bronze whip is set in a teflon insulator and the chrome-plated ball tip provides low noise static discharge. The antenna is designed to operate at speeds up to 350 mph and altitudes of 50,000 ft. It has a drag force of 0.75 lb @ 250 mph.

Product Specifications
ModelAV-15
Application Airborne Communications
Frequency 450 – 470 MHz
Impedance50 Ohms Nominal
VSWR1.5:1 Maximum
PolarizationVertical
PatternOmni-Directional
Connector“N” Female
Max Height6.25″
RF Power Capacity100 Watts
FAA TSOC37d, C38d
Support Documents
Outline DrawingView

FAA TSO AuthorizationView
Install InstructionsView
