AV-532L

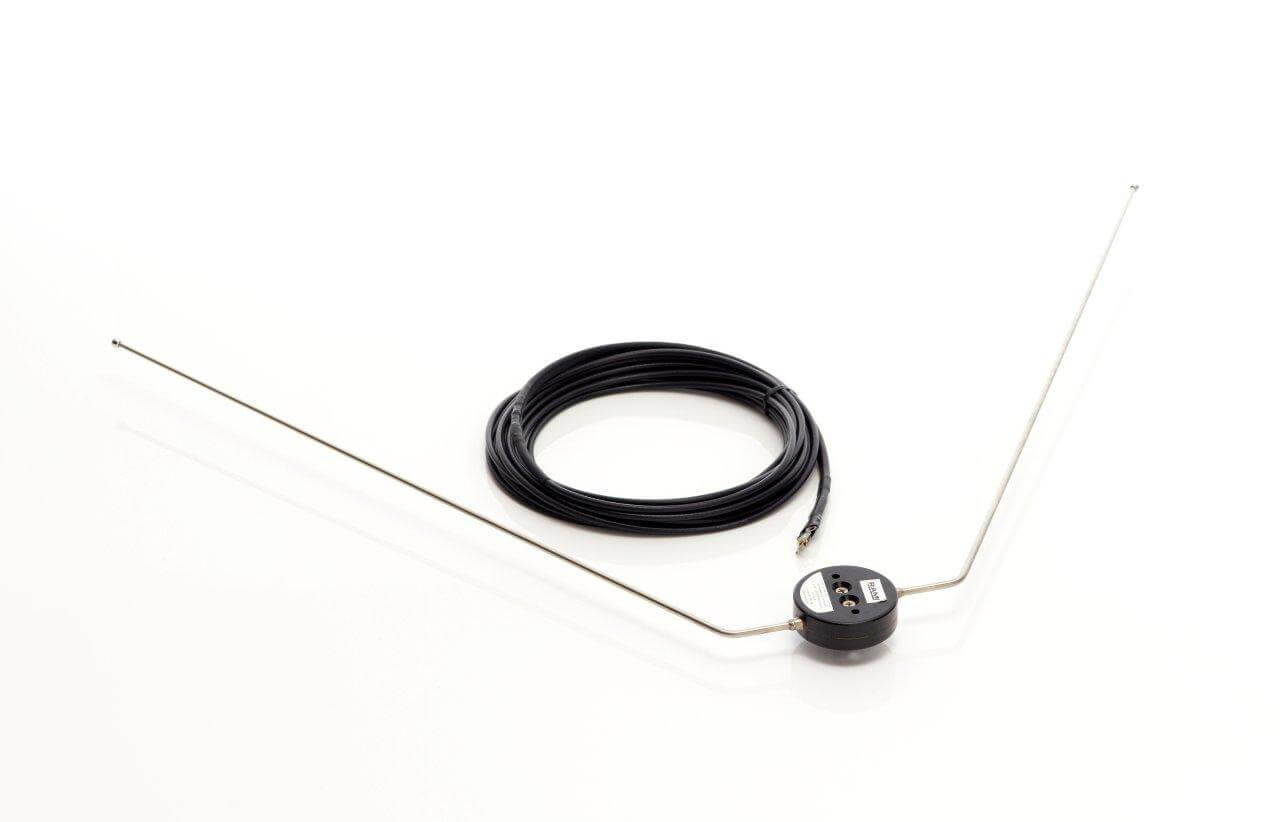

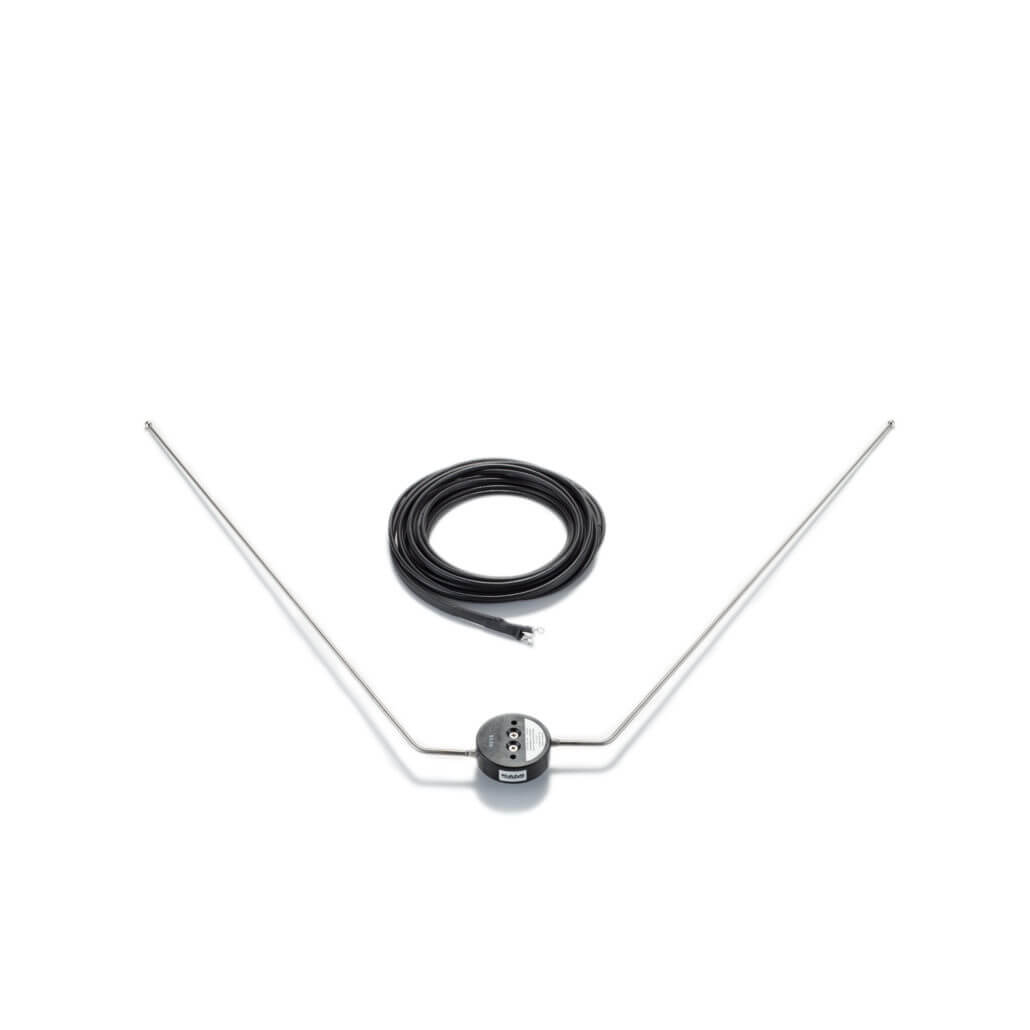

The AV-532 is a VOR/LOC/GS receive only antenna which consists of taper ground high-strength 17-7PH stainless steel elements to reliably withstand vibration and wind loads. The insulators are weather-sealed compression-molded bakelite with the mounting holes provided. The unit may be mounted with the V pointed either forward or aft. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 3.42 lb @ 250 mph. A 30 ft. transmission line with integral balun is also supplied.

Product Specifications
ModelAV-532L
Application VOR/LOC/GS Receive Only
Frequency 108 – 118, 328-336 MHz
Impedance50 Ohms Nominal
VSWR2.0:1 Maximum
PolarizationHorizontal
PatternOmni-Directional
ConnectorThreaded studs to accept transmission line assembly with integral balun transformer (included)
RF Power CapacityReceive Only
FAA TSOC40c
Support Documents
Footprint DrawingView
Outline DrawingView

FAA TSO AuthorizationView
Install InstructionsView
