AV-535

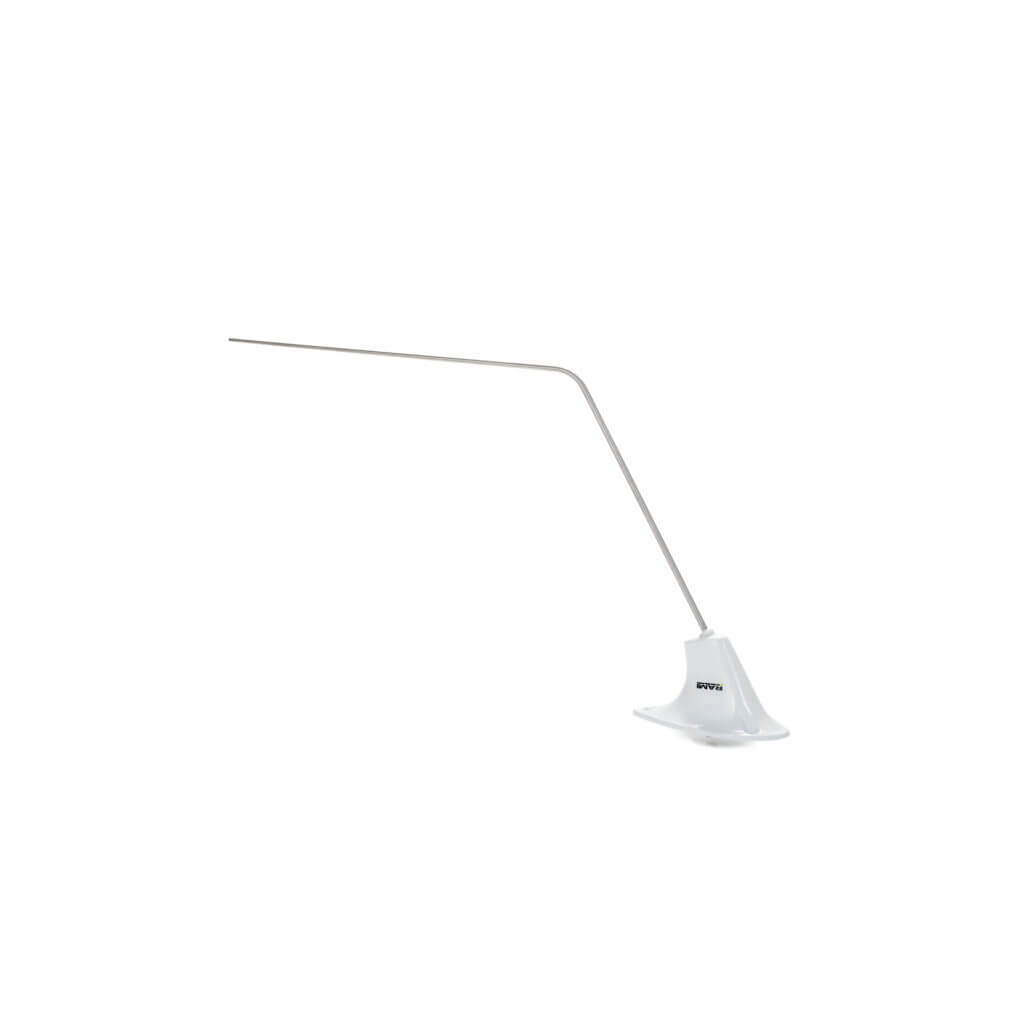

The AV-535 is a Bent Whip antenna suitable for belly mounting. It is designed to operate in the public service and business bands. The antenna is rated at speeds up to 350 mph and altitudes up to 50,000 feet. It is a direct replacement for the CI 292-3.

Product Specifications
ModelAV-535
Application FM Extended band
Frequency 138-174 MHz
Impedance50 Ohms Nominal
VSWR3.0:1 Maximum
PolarizationVertical
PatternOmni-Directional
Connector“BNC” Female
RF Power Capacity100 Watts
FAA TSONone
ColorGloss White
Support Documents
Footprint DrawingView

Install InstructionsView
