AV-585

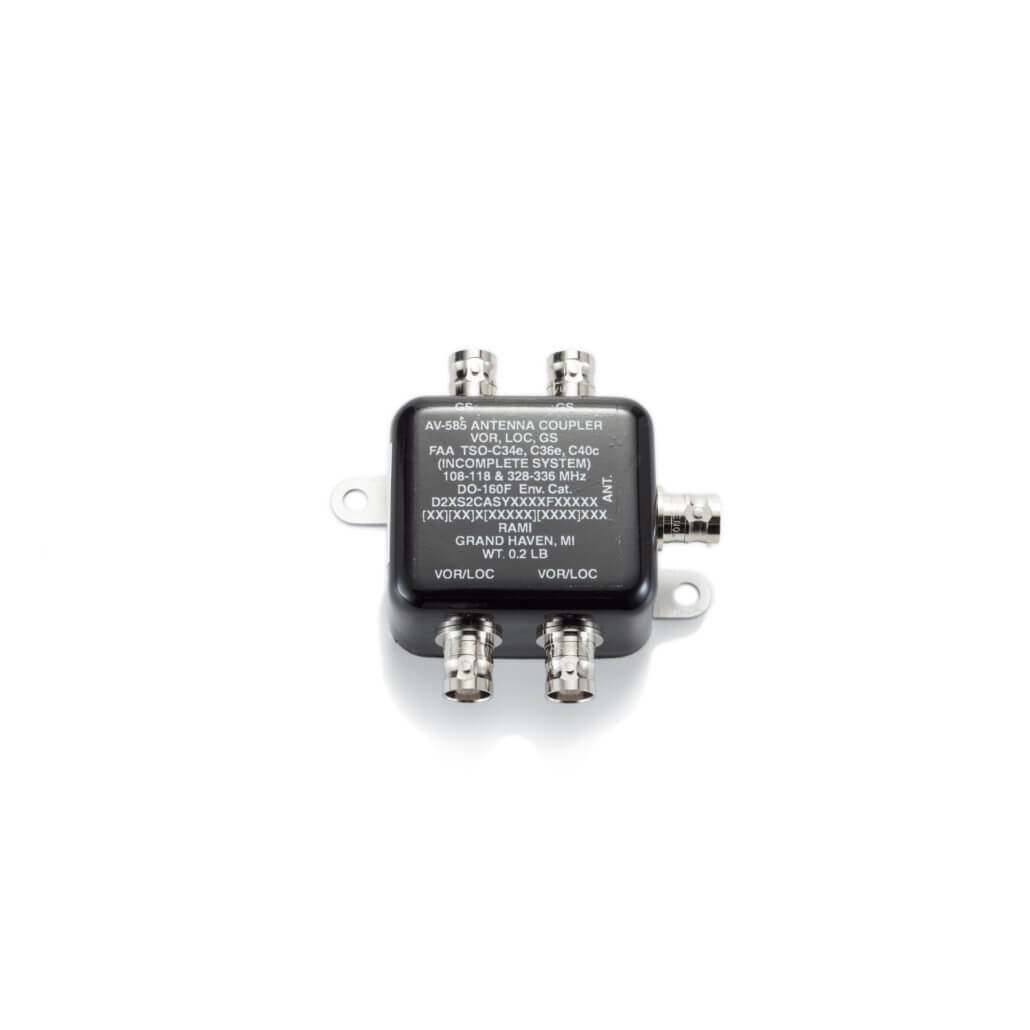

The AV-585 antenna is a diplexer/splitter providing (2) VOR/ LOC and (2) GS outputs from one VOR/LOC/GC antenna. It is a direct replacement for the CI 1125.

Product Specifications
ModelAV-585
Application Provides (2) VOR/LOC and (2) GS output ports from (1) VOR/LOC/GS antenna
Frequency 108-118 MHz 328-336 MHz
Impedance50 Ohms Nominal
VSWR1.5:1 Maximum
Insertion Loss3.5 dB Maximum
Isolation20 dB Min. between VOR & GS 18 dB Min. between VOR Ports 18 dB Min. between GS Ports
Connector“BNC” Females
FAA TSOC34e, C36e, C40e
ColorGloss Black
Support Documents
Outline DrawingView

FAA TSO AuthorizationView
Install InstructionsView
