AV-586

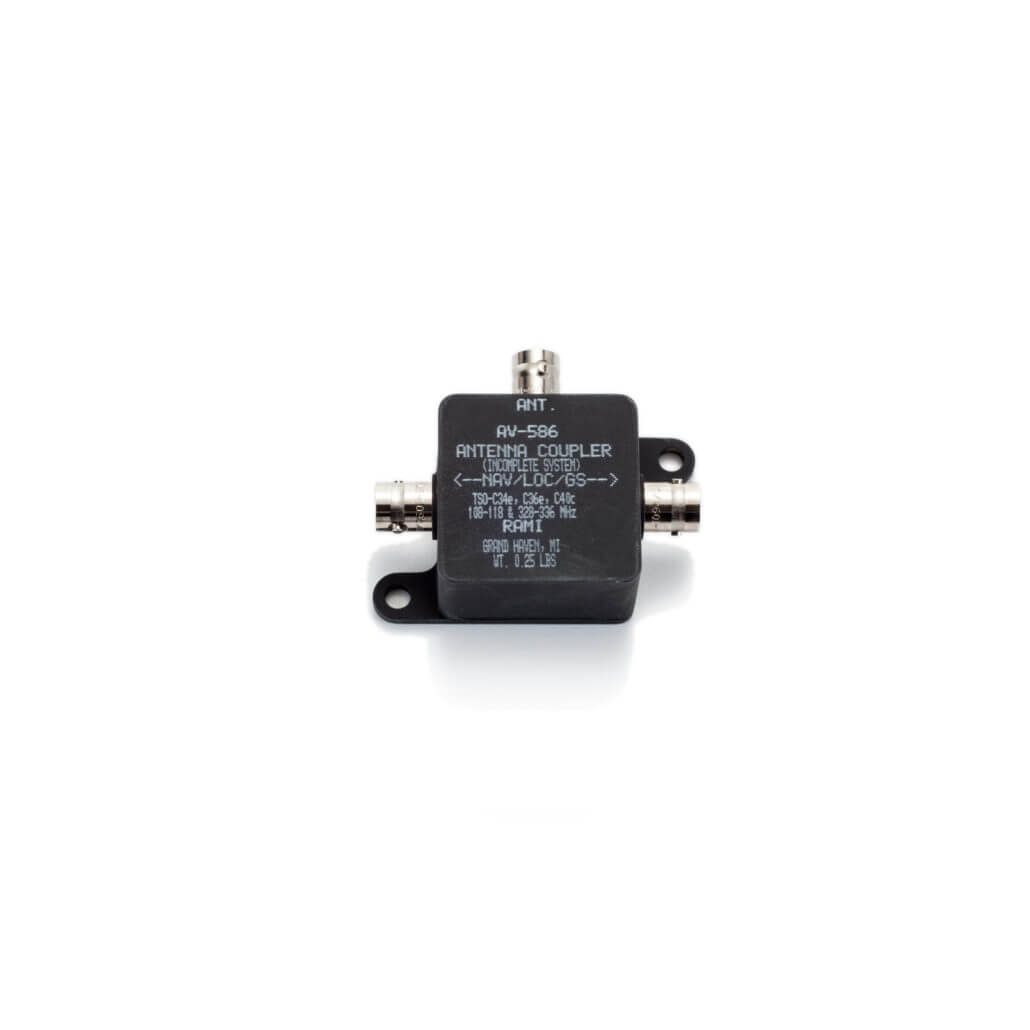

The AV-586 Antenna Coupler is an antenna signal splitter providing two outputs from a single antenna. The necessity of bringing this product forward comes from advancing technology in avionics. Newer designed navigational radios have only one antenna input to receive all three (VOR/LOC/GS) signals whereas older legacy radios had a separate antenna input for the VOR/LOC signal and another antenna input for the GS signal. In an aircraft instrument panel with two newer navigational radios the AV-586 is the article that will provide the necessary signals to both radios utilizing a single antenna.

Product Specifications
ModelAV-586
Application Navigation Receive
Frequency Port 1: Antenna Port 2: NAV/LOC/GSPort 3: NAV/LOC/GS
Impedance50 Ohms Nominal
VSWR1.40:1 Max.
Insertion Loss< .6 dB above 3.0 dB
Isolation>22 dB
Connector“BNC” Females
RF Power CapacityReceive Only
FAA TSOC34e, C36e, C40e
ColorBlack
Support Documents
Outline DrawingView

FAA TSO AuthorizationView
Install InstructionsView
