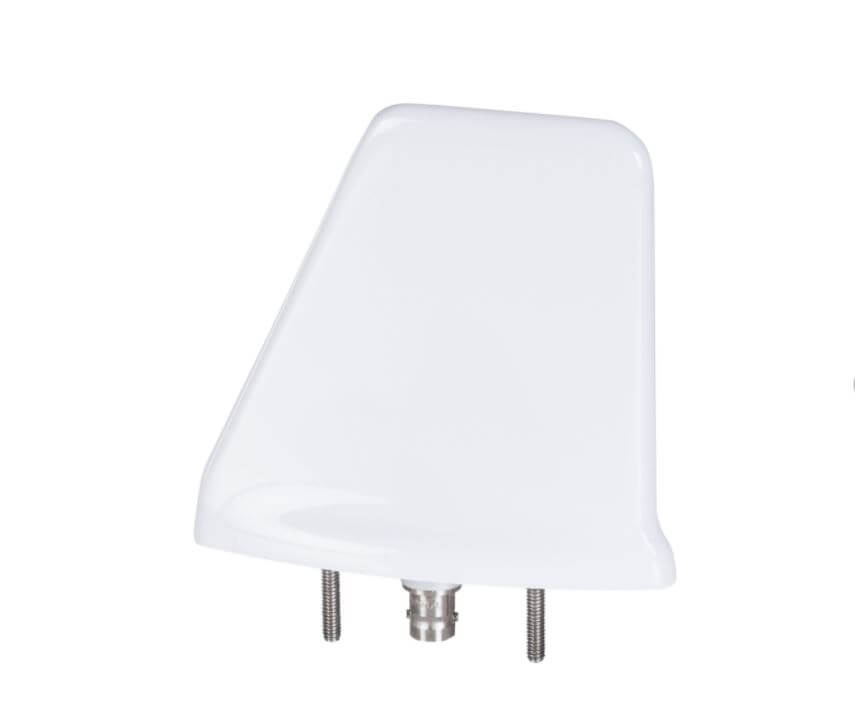

AV-75

The AV-75 is a broadband blade type antenna for FLARM collision avoidance application.  The antenna housing is constructed of anancrylonitrile-styrene-acrylic (ASA) shell.  The white color allows maximum performance without losses due to color pigments or unseen dirt.  The antenna is supplied with cellular neoprene mounting pad and hardware.  The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 feet.

Product Specifications
Model NumberAV-75
Application Collision Avoidance
Frequency 864-930 MHz
Impedance50 Ohms Nominal
VSWR1.5:1 Max
PolarizationVertical
Connector“BNC” Female
PatternOmni- Directional
RF Power Capacity10 Watts Nominal
Gain on 4 ft Round Ground Plane4 dBi Nominal
Max Weight0.33 lbs
Color Gloss White
Support Documents
