RAMI8711
Vehicular Antenna | SATCOM

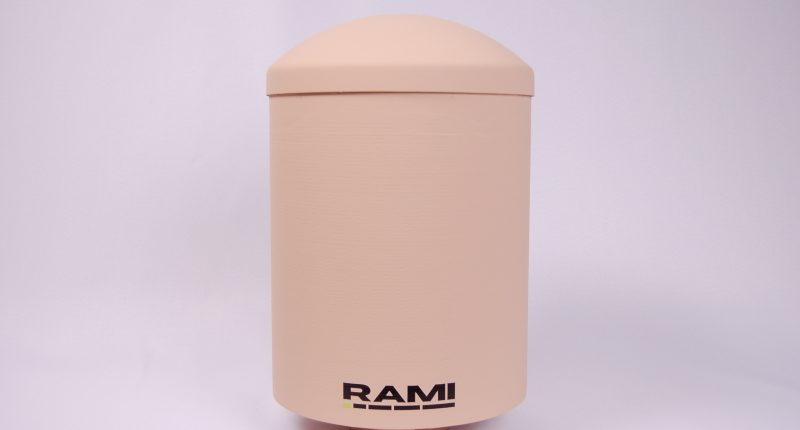

The RAMI8711 is an extremely rugged UHF SATCOM antenna with Right Hand Circularly Polarized (RHCP) designed for tactical vehicles for on the move (OTM) applications. The low profile design reduces interference from overhanging objects and has a low visual signature. The antenna has the frequency coverage to support both Legacy and MUOS UHF communication needs and can cover the entire hemispherical Field of View (FOV) with a single output port which eliminates the need to switch between high and low angles. The antenna has been designed to interface with a standard NATO mount and can be elevated on a riser if needed.
For elevated mounting applications, see part number RAMI8714
| Model | RAMI8711 |
| Application | UHF SATCOM |
| NSN: (RAMI8711T) | 5985-01-692-7048 |
| Frequency | Legacy SATCOM Rx 243 to 270 MHz Legacy SATCOM Tx 292 to 318 MHz MUOS SATCOM Rx 360 to 380 MHz MUOS SATCOM Tx 300 to 320 MHz |
| Gain | Legacy Rx (243-270 MHz) Elevation Angle: 90 degrees 6.0 dBic 45 degrees 2.5 dBiC 20 degrees -2.5 dBiC Legacy Tx (292-318 MHz) Elevation Angle: 90 degrees 5.0 dBiC 45 degrees 1.0 dBiC 20 degrees -3.0 dBiC MUOS RX (360-380 MHz) Elevation Angle: 90 degrees 2.0 dBiC 45 degrees 2.0 dBiC 20 degrees -2.0 dBiC MUOS Tx (300-320 MHz) Elevation Angle: 90 degrees 5.0 dBiC 45 degrees 1.0 dBiC 20 degrees -3.0 dBiC |
| VSWR | 1.5:1 |
| Polarization | RHCP |
| Connector | “N” Female |
| RF Power Capacity | 100 Watts CW |
| Max Weight | 7.3 lbs. |
| Color | P/N: RAMI8711G CARC Green P/N: RAMI8711T CARC Tan P/N: RAMI8711B CARC Black |
| Environmental Testing | MIL-STD-810G Compliant |
