boat type marker beacon - AV-569

AV-569

Marker Beacon | VHF

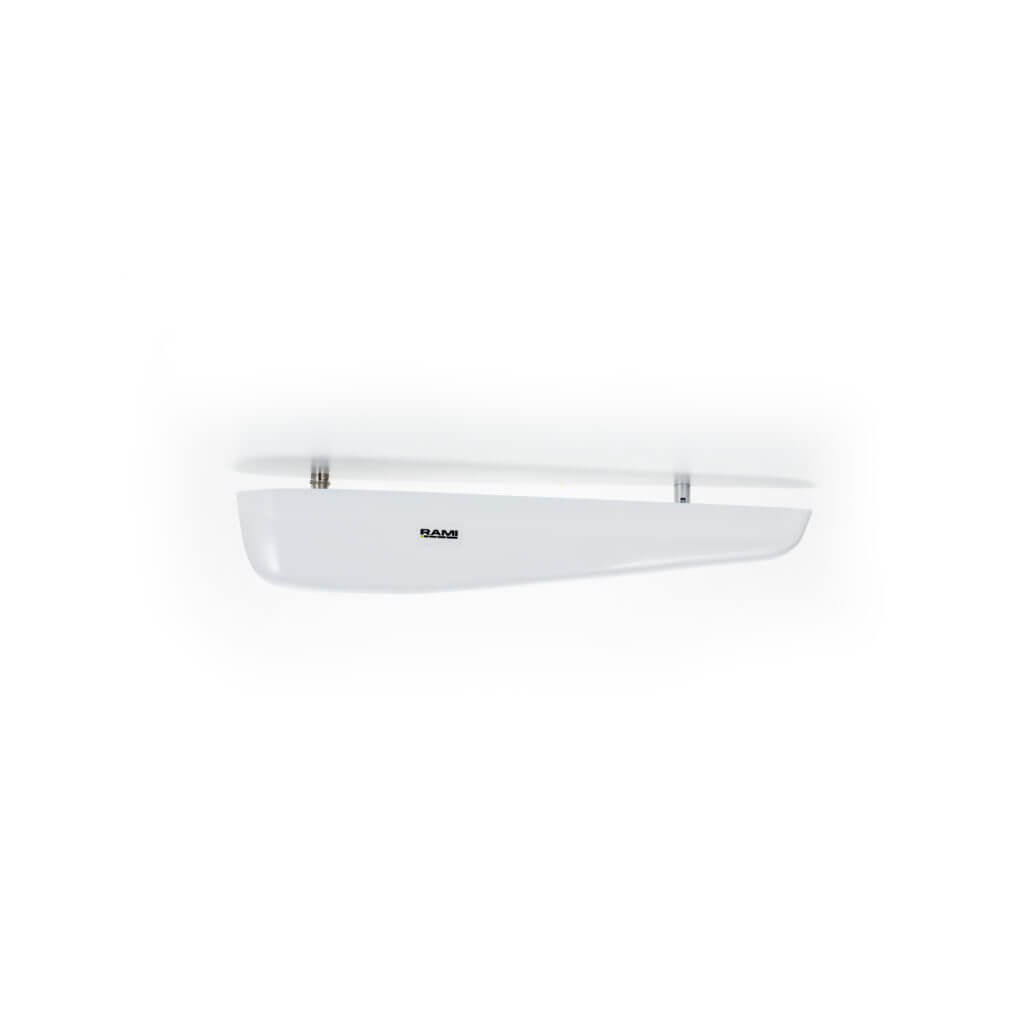

The AV-569 is a boat type marker beacon antenna designed for very low drag. It is constructed of an acrylonitrile-styrene- acrylic (ASA) shell with the internal parts encapsulated in rigid urethane foam for mechanical and electrical stability. The white color allows maximum performance without losses due to color pigments or unseen dirt. It is supplied with cellular neoprene mounting pad and hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.20 lb @ 250 mph.

Product Specifications
ModelAV-569
Application Marker Beacon (Receive Only)
Frequency 75 MHz
Impedance50 Ohms Nominal
VSWR1.6:1 Maximum
Connector“BNC” Female
Max Height2.2″
Max. Weight6.25 oz.
RF Power CapacityReceive Only
FAA TSOC35d
Support Documents
Footprint DrawingView
Outline DrawingView

FAA TSO AuthorizationView
Install InstructionsView
GAA Environmental Qualification Form
View
