marker beacon splitter - AV-575

AV-575

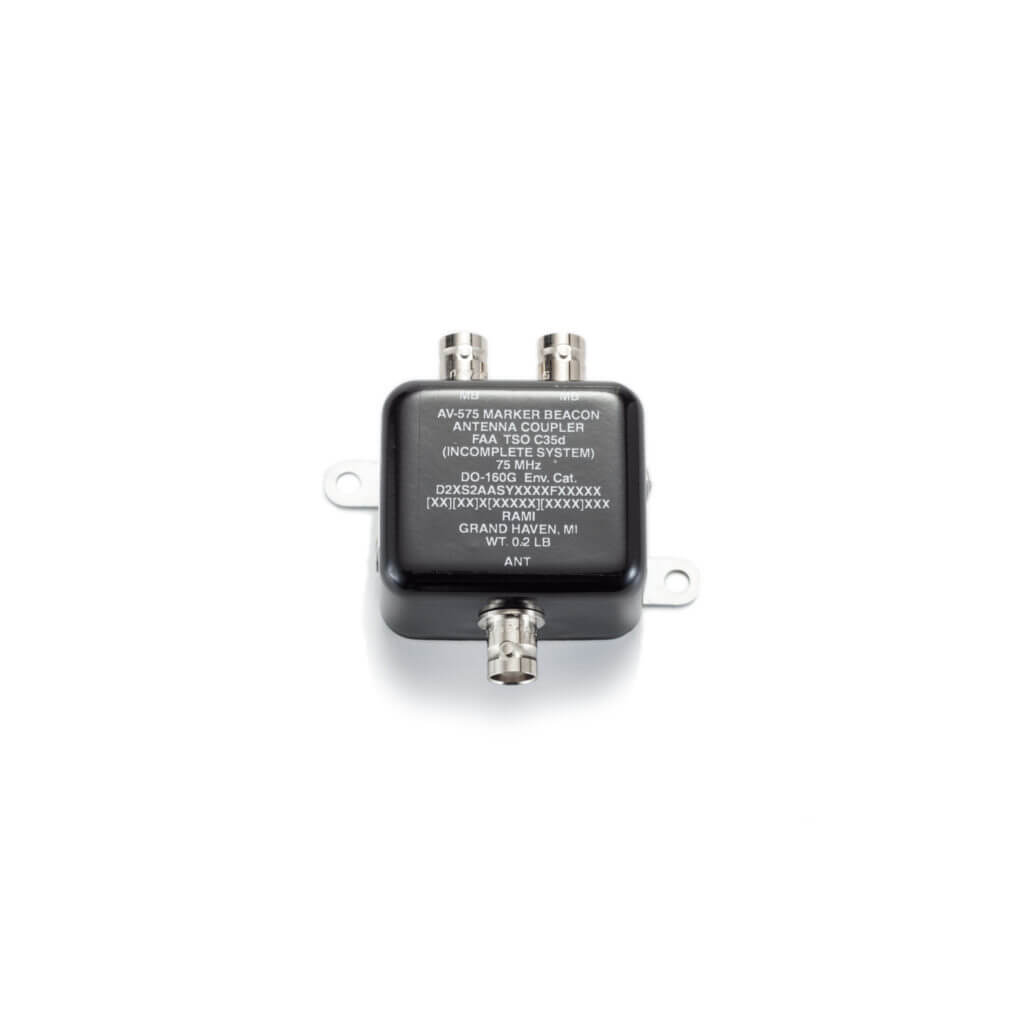

Marker Beacon Antenna Splitter

The AV-575 antenna is a marker beacon antenna splitter allowing two receivers to share the same antenna. It is a direct replacement for the CI 509.

Product Specifications
ModelAV-575
Application Marker Beacon
Frequency 75 MHz
Impedance50 Ohms Nominal
VSWR1.5:1 Maximum
Insertion Loss3.5 dB Maximum
Isolation20 dB Minimum
Connector“BNC” Female
RF Power CapacityReceive Only
ColorGloss Black
Max. Weight0.20 lbs.
FAA TSOC35d
Support Documents
Footprint DrawingView
FAA TSO AuthorizationView
Install InstructionsView
Environmental QualificationView
