AV-61

Aviation L-Band and Transponder Antenna

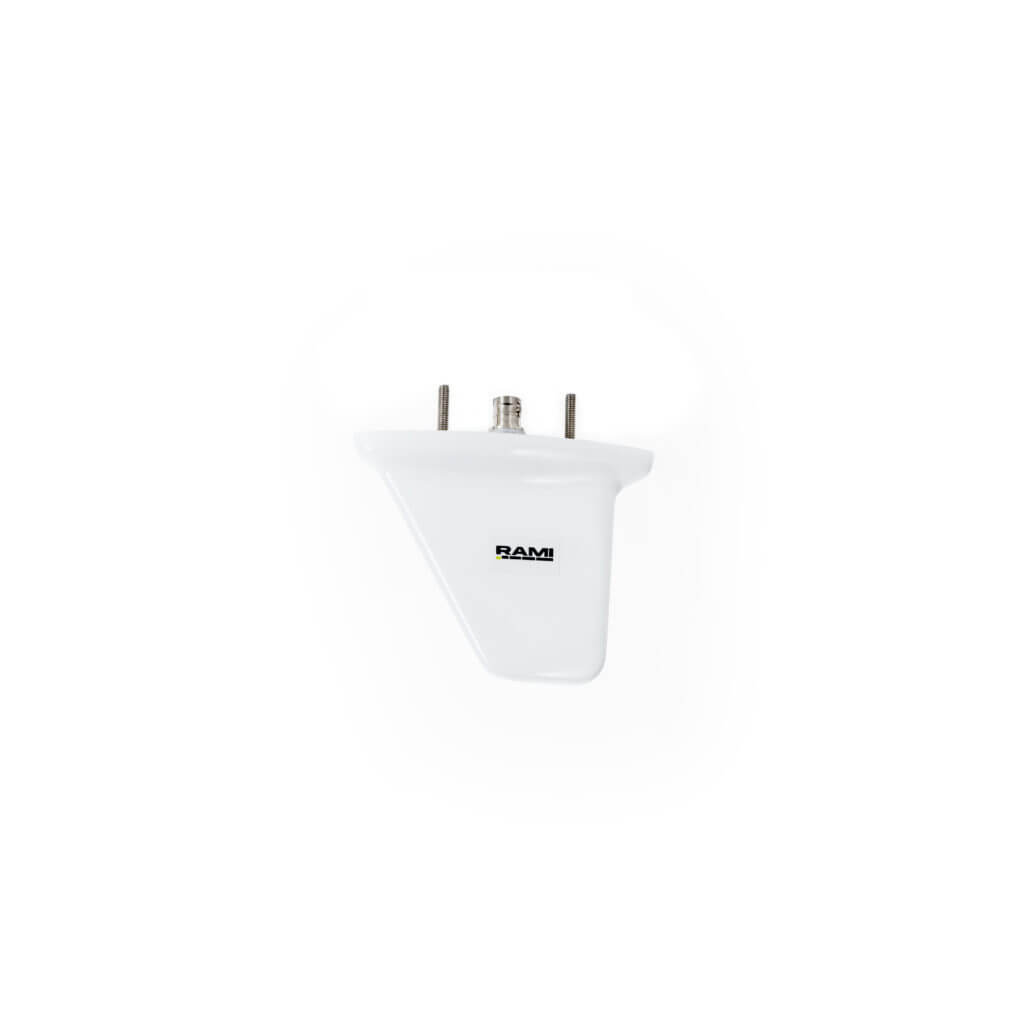

The AV-61 is a broadband blade type antenna for DME, Transponder, ATCRBS/MODES, TCAS & TAS. The antenna housing is constructed of anacrylonitrile-styrene-acrylic (ASA) shell. The white color allows maximum performance without losses due to color pigments or unseen dirt. The antenna is supplied with cellular neoprene mounting pad and hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It operates at 960-1220 MHz and it has a drag force of 0.09lbs @ 250 mph. This antenna is a direct replacement for Honeywell’s KA61.

Product Specifications
ModelAV-61
Application DME, Transponder, ATCRBS/MODES, TCAS & TAS
Frequency 960 – 1220 MHz
Impedance50 Ohms Nominal
VSWR1.5:1 Maximum
PolarizationVertical
PatternOmni-Directional
Connector“BNC” Female
RF Power Capacity2.5 kW Peak
GainUnity
Max. Weight0.2 lbs.
ColorGloss White
Lightening ProtectionDC Grounded
FAA TSOC66c, C74d, C112e, C118a, C147a
Support Documents

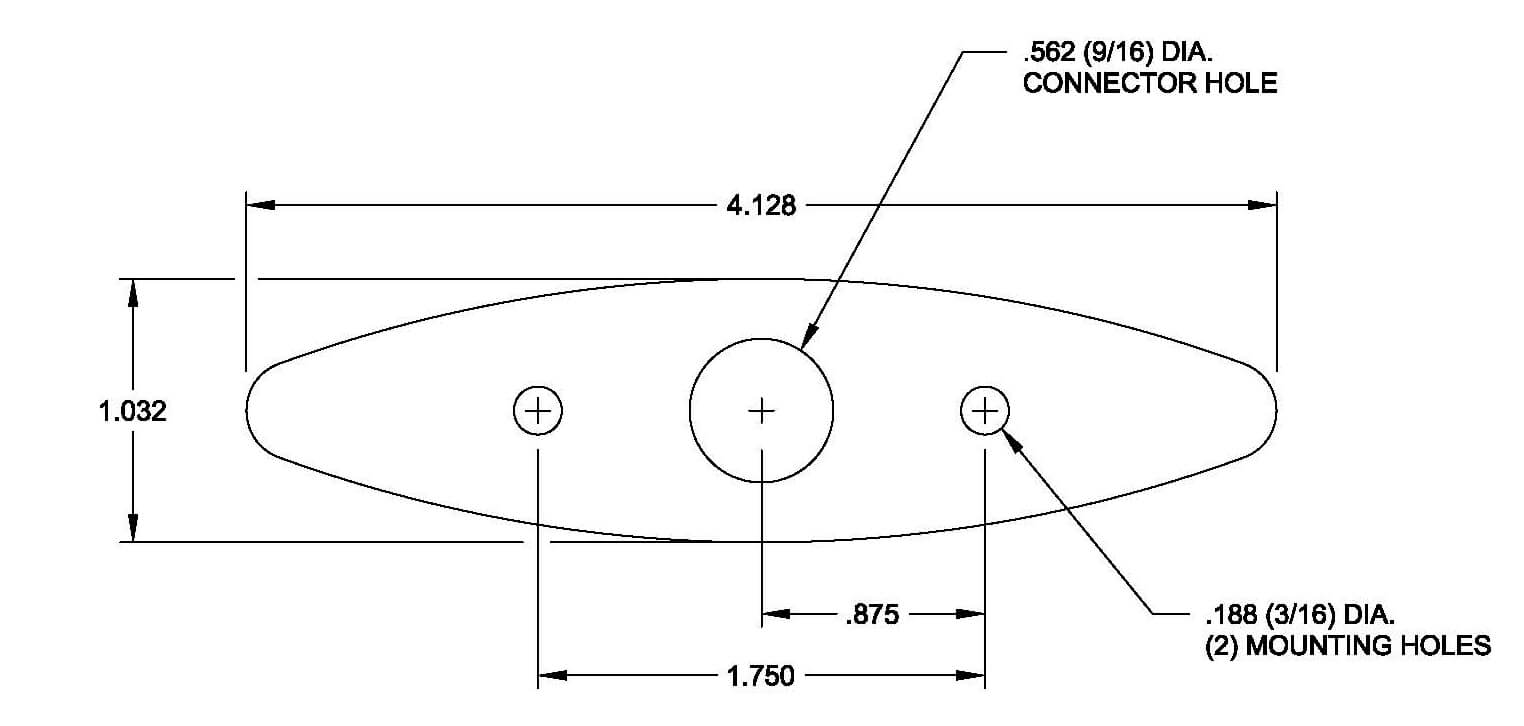

Footprint DrawingView
FAA TSO AuthorizationView
Installation InstructionsView
Declaration of Design and Performance (DDP)View
