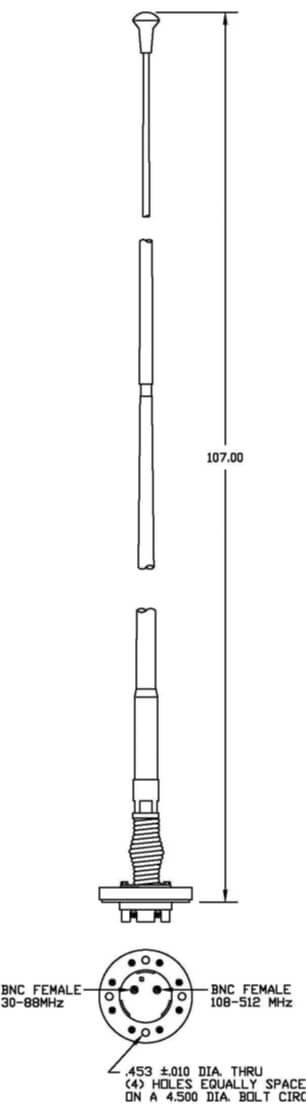

RAMI390-2 engineering drawing

RAMI390-2

Vehicular Antenna | VHF, UHF

The RAMI390-2 is a ruggedized, rigid base, multiband vehicular antenna. This antenna operates with legacy radios for SINGARS and EPLRS through the newest multiband radios. It is provided with the standard NATO mounting bolt pattern, provides a low vertical signature and replaces multiple antennas. It is fully “oak beam” and HV compliant.

Product Specifications
ModelRAMI390-2
Application Ground Based Communications
Frequency 30-88 MHz & 108-512 MHz

Gain at Horizon30-512 MHz:
-6 dBmp to 0 dBmp
VSWR30-88 MHz: less than 3.5:1 on a 10’ square ground plane
108-512 MHz: less than 3.0:1 on a 10’ square ground plane
PolarizationVertical
Connector30-88 MHz – BNC Female
108-512 MHz – BNC Female
RF Power Handling50 Watts CW across all operating frequencies
ColorP/N: RAMI390G-2 CARC Green
P/N: RAMI390T-2 CARC Tan
P/N: RAMI390B-2 CARC Black
Max. Weight8 Lbs
Impedence50 Ohms Nominal
PatternOmni-Directional
Port to Port Isolation25 dB Min.
Environmental TestingMIL-STD-810G Compliant
