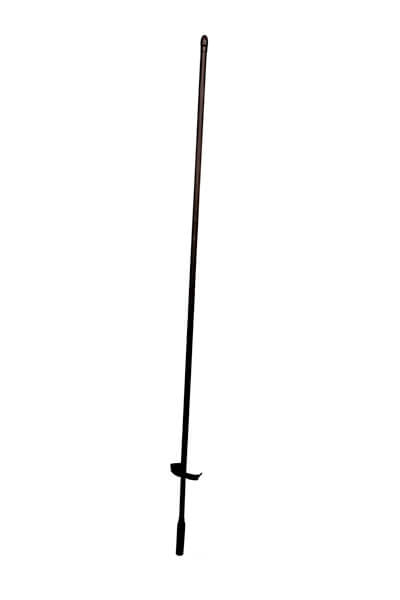

RB0809B handheld antenna

RB0809B

Handheld Antenna | VHF

The RB0809B is a rugged yet flexible blade style VHF antenna with a gooseneck. This antenna operates in the VHF band from 30-108 MHz. It is designed for handheld applications and is submersible to 20 meters of water depth.

Product Specifications
ModelRB0809B
Application VHF Handheld
Frequency 30-108 MHz
Impedance50 Ohms Nominal
Gain30-60 MHz >-20 dBi
60-108 MHz >-10 dBi
VSWR3.0:1 Maximum
PolarizationVertical
PatternOmni-Directional
Connector“TNC” Male
RF Power Capacity8 Watt CW
Max Height45″
DC ResistanceInfinite
Max Weight0.34 kg (0.75 lbs.)
Environmental TestingMIL-STD-810G

Request A Quote For This Product
