RDP7224B
Antenna Accessory | Diplexer

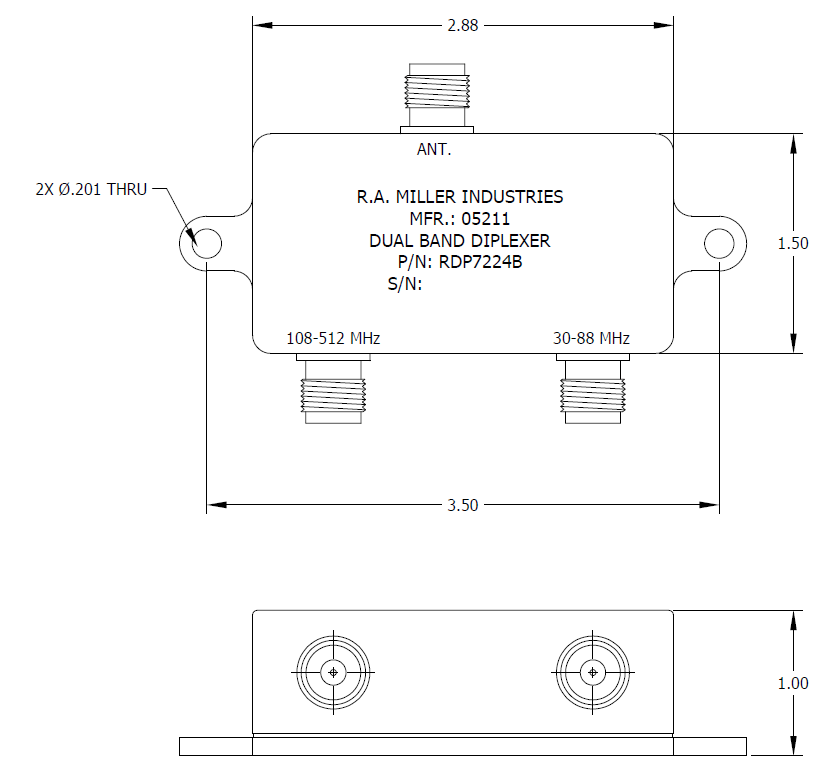

The RDP7224B is a dual band diplexer with all “TNC” connectors. One port operates at 30-88 MHz and the other operates from 108-512 MHz.
| Model | RDP7224B |
| Application | Secure Communications |
| Frequency | Port 1: Antenna Port 2: 30-88 MHz Port 3: 108-512 MHz |
| Impedance | 50 Ohms Nominal |
| VSWR | 1.35:1 Typical/1.5:1 Maximum |
| Insertion Loss | less than 0.5 dB |
| Isolation | greater than 20 dB & greater than 25 dB Typical |
| Connector | “TNC” Connectors (All ports) |
| RF Power Handling | 150 Watts CW |
| Max Weight | 6.5 oz |
| Color | CARC Black |
