RAMI231
Ground Based Vehicular | VHF

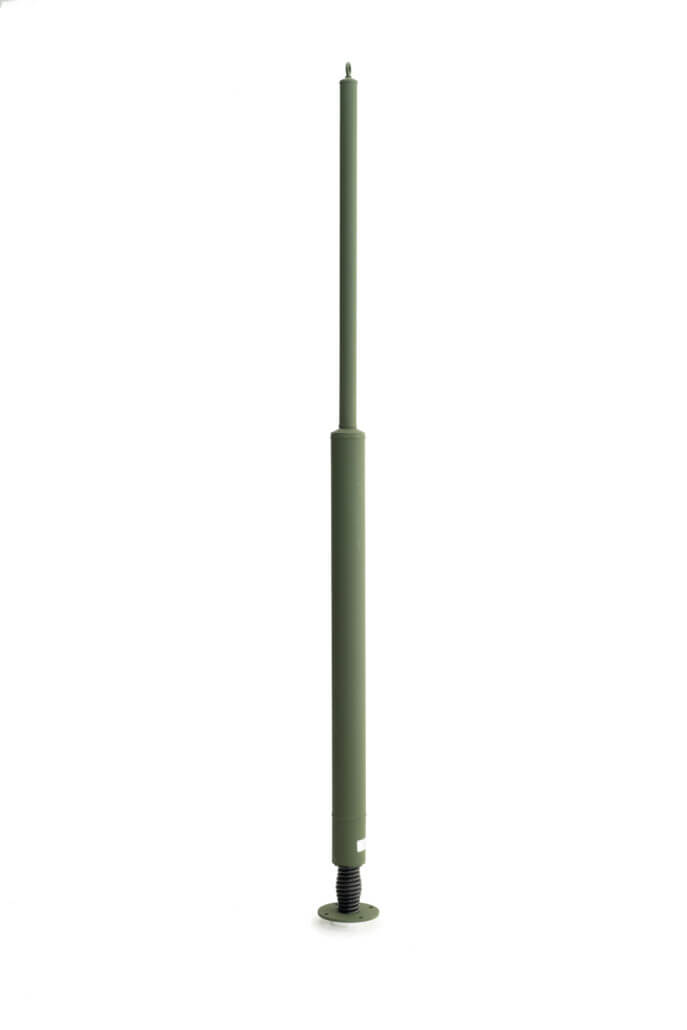

The RAMI231 rigid base, vehicular antenna was designed per MIL-STD 810 for use in all climates and terrains. This antenna utilizes guy downs for increased structural integrity while overcoming an overhead impact. This design will remain operational in adverse weather conditions including winds up to 100MPH and is equipped with lightening strike protection. The RAMI231 can handle a high voltage strike of 20,000 VRMS, all while operating with 30-88 MHz radios.
| Model | RAMI231 |
| Application | Secure Communications |
| Frequency | 30-88 MHz |
| Impedance | 50 Ohms Nominal |
| Gain | 0 dBi Typical |
| VSWR | 2.5:1 Typical |
| Polarization | Vertical |
| Pattern | Omni-Directional |
| Connectors | “BNC” Female |
| RF Power Handling | 200 Watts CW |
| Color | CARC Green |
| Max. Weight | 11 lbs |
| Environmental Testing | MIL-STD-810G Compliant |
