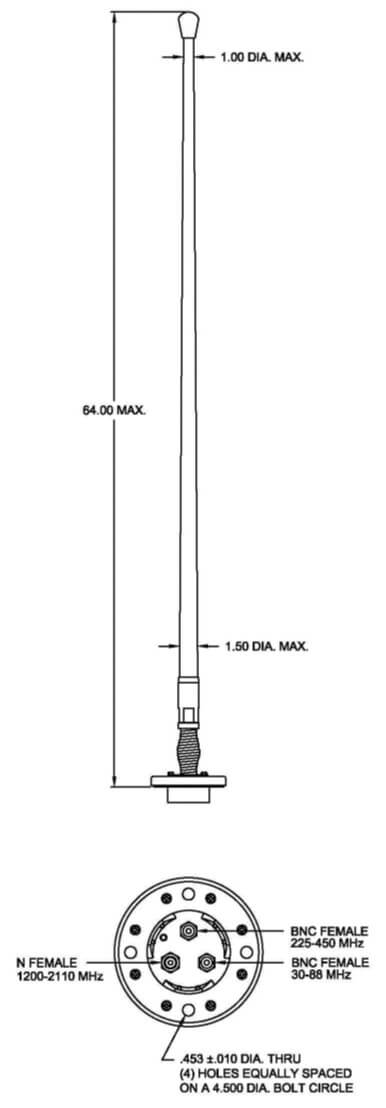

RTB3010 engineering drawing - vehicular antenna

RTB3010

Ground Based Vehicular | L-Band, Tri-Band

The RTB3010 is ruggedized multiband vehicular antenna with a rigid base. This functionality helps to significantly reduce the number of antennas on the vehicle. The antenna operates with legacy radios for SINCGARS and EPLRS through new multiband radios such as the Side Winder radio. Operating in VHF and UHF frequencies, and multiple frequency inputs may be used simultaneously. The antenna is fully “oak beam” compliant and has L-Band and Tri-Band capabilities.

Product Specifications
ModelRTB3010
Application Ground Based Communications
Frequency 30-88 MHz
225-450 MHz
1200-2110 MHz
Impedance50 Ohms Nominal
Peak Gain at Horizon30-88 MHz -8.0 dBi to -3.0 dBi
(On a 10’ x 10’ Ground Plane)
225-450 MHz 0.0 dBi to +2.0 dBi
1200-2110 MHz +1.0 dBi
1250-1350 MHz +3.0 dBi
1750-1850 MHz +3.0 dBi
VSWR30-88 MHz 3.0:1 Max
225-450 MHz 3.0:1 Max
1200-2110 MHz 2.75:1 Max
Port to Port Isolation>40 dB
PolarizationVertical
PatternOmni-Directional
Connectors“BNC” Female 30-88 MHz
“BNC” Female 225-450 MHz
“N” Female 1200-2110 MHz
ColorP/N: RTB3010G CARC Green
P/N: RTB3010T CARC Tan
P/N: RTB3010B CARC Black
AntennaVHF: Monopole
UHF: Integrated Dipole
L-Band: PCB Quad Dipole
RF Power HandlingVHF 75 Watts CW
UHF 75 Watts CW
L-BAND 75 Watts CW
Max Weight11 lbs
Environmental TestingMIL-STD-810G Compliant
