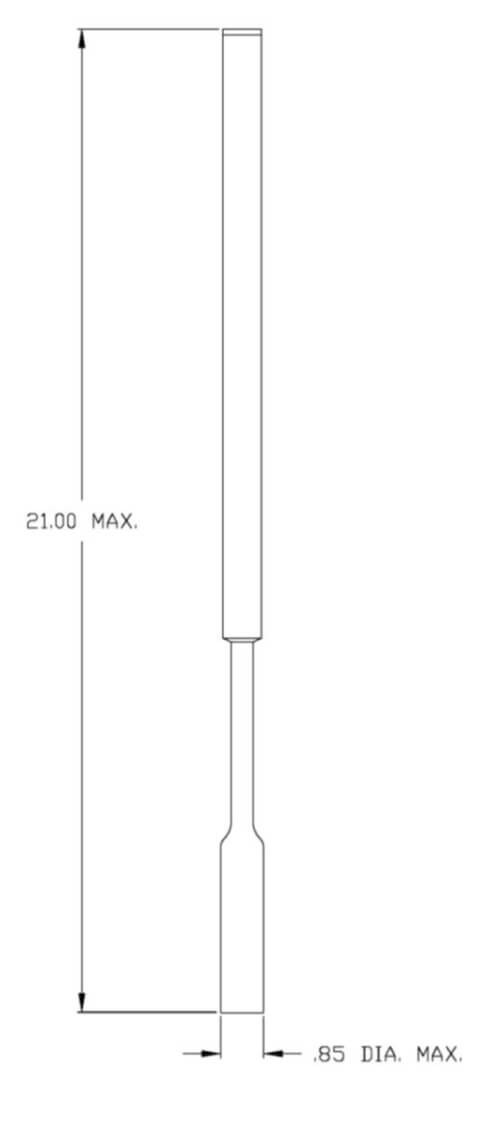

RMH1217B manpack gooseneck antenna

RMH1217B

Handheld/Manpack | UHF

The RMH1217B is a rugged, UHF manpack style antenna with gooseneck option that operates from 225-450 MHz. Offering superior electrical performance, this design can handle the upmost of rigorous environmental conditions.

Product Specifications
ModelRMH1217B
Application Manpack / Handheld
Frequency 225-450 MHz
Impedance50 Ohms Nominal
Gain0 dBi Typical
VSWR2.5:1 Max.
2.25:1 Typical
PolarizationVertical
PatternOmni-Directional
ConnectorN Male
RF Power Capacity20 Watts CW / 26 Watts Peak
ColorBlack
Max Weight0.55 lbs
Environmental TestingMIL-STD-810G Compliant
