RMH1117B
Handheld/Manpack | VHF

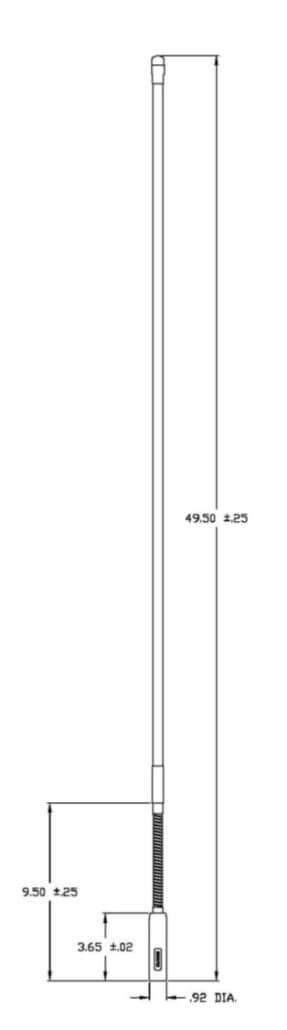

The RMH1117B is a rugged, yet flexible 1 meter blade style antenna with gooseneck. The antenna operates from 30-88 MHz. It is designed for handheld/manpack applications and is submersible to 20 meters of water depth.
| Model | RMH1117B |
| Application | Handheld / Manpack |
| Frequency | 30-88 MHz |
| Impedance | 50 Ohms Nominal |
| Gain | 30 MHz > -16dBi 50 MHz > -7dBi 88 MHz > -2dBi |
| VSWR | 3.5:1 Max. |
| Polarization | Vertical |
| Pattern | Omni-Directional |
| Connector | “N” Male |
| RF Power Capacity | 20 Watts CW / 26 Watts Peak |
| Color | Black |
| Max Weight | 0.65 lbs |
| Environmental Testing | MIL-STD-810G Compliant |
