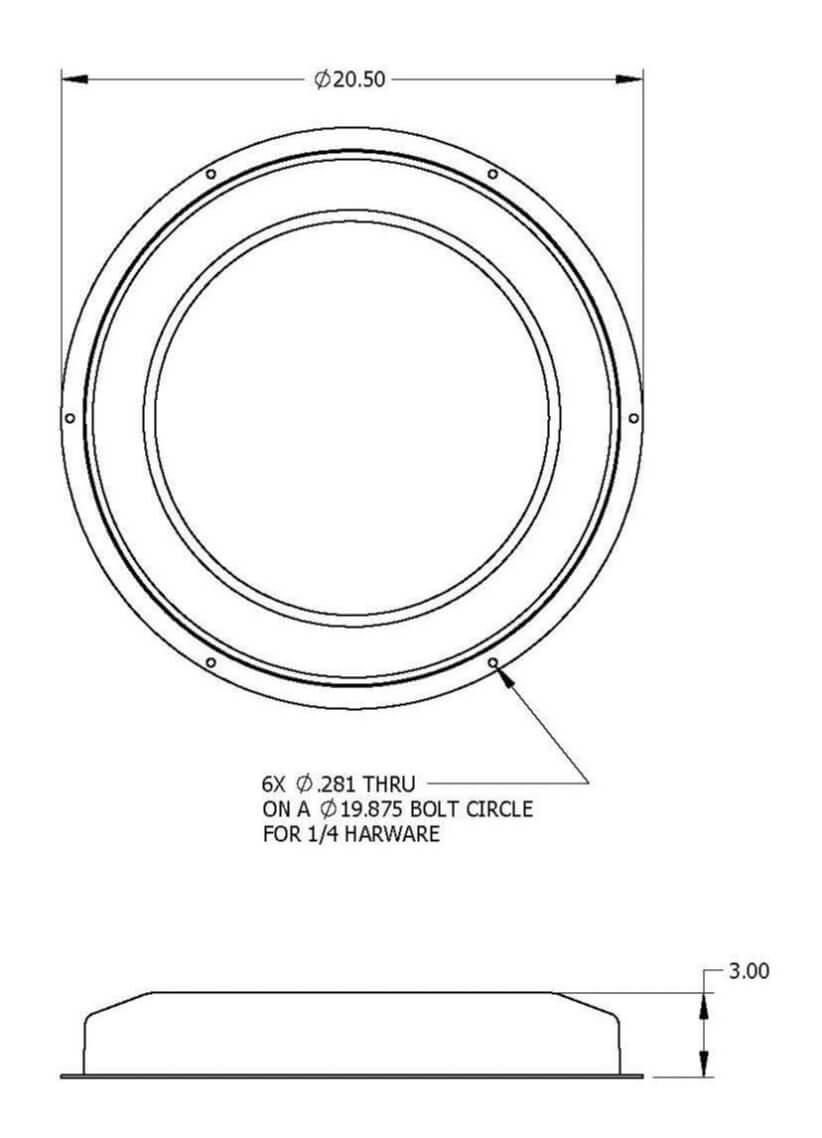

RAMI8713 SATCOM antenna engineering drawing

RAMI8713

Ground Based Vehicular | SATCOM

The RAMI8713 is a low profile SATCOM antenna designed for applications where a direct roof mount is not available. It does not require a metal ground plane. This is an extremely rugged Right Hand Circularly Polarized (RHCP) antenna designed for tactical vehicles for on‐the‐move (OTM) applications. The antenna has the frequency coverage to support both Legacy and MUOS UHF communication needs and can cover the entire hemispherical Field of View (FOV) with a single port which eliminates the need to switch between high and low angles. This antenna has a flange mount for easy installation.

Product Specifications
ModelRAMI8713
Application UHF
Frequency Legacy SATCOM Rx 243 to 270 MHz
Legacy SATCOM Tx 292 to 318 MHz
MUOS SATCOM Rx 360 to 380 MHz
MUOS SATCOM Tx 300 to 320 MHz

GainElevation
Angle Gain
(Degrees) (dBiC)
90 3.0
45 -0.5
20 -3.5
VSWR1.5:1
PolarizationRHCP
Connector“N” Female
RF Power Capacity100 Watts CW
ColorP/N: RAMI8713G CARC Green
P/N: RAMI8713T CARC Tan
P/N: RAMI8713B CARC Black
Environmental TestingMIL-STD-810G Compliant
