RV-SC-MIMO-GPS
Ground Based Vehicular | MIMO 4G LTE & 5G w/ GPS

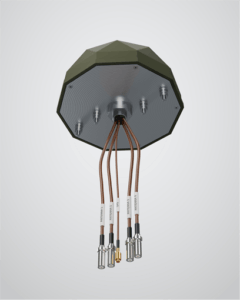

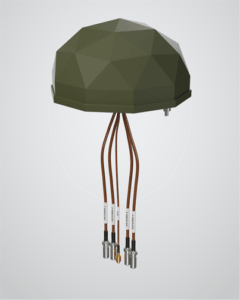

The RAMI RV-SC-MIMO-GPS is a MIMO 4G LTE and 5G vehicular antenna with GPS. The low profile antenna is meant to be mounted on the roof of a vehicle and an integrated gasket provides protection from water ingress around the antenna. The cables exit the antenna through a single threaded opening with a slotted nut. Four, 1-inch mounting studs are used to hold the antenna securely to the vehicle.
| Model | RV-SC-MIMO-GPS |
| NSN/Cage | N/A |
| Application | Military Vehicle MIMO 4G LTE and 5G vehicular antenna with GPS |
| Frequency | 698 – 3800 MHz L1: 1575.42 +/- 2 MHz L2: 1227.60 +/- 2 MHz L3: 1176.45 +/- 2 MHz |
| Impedance | 50 Ohms Nominal |
| VSWR | 698-960 MHz: less than 3.0:1 1710-2700 MHz: less than 2.5:1 3300-6000 MHz: less than 2.5:1 GPS: 1.5:1 Max |
| Polarization | Vertical: 698-3800 MHz Right Hand Circular: L1, L2,& L3 |
| Connectors | Ant 1: BNC Female Ant 2: BNC Female Ant 3: BNC Female Ant 4: BNC Female GPS: SMA Male |
| Gain Coverage at Horizon: (on 4-foot diameter ground plane) | 698-1000 MHz: -1 to +1 dBi 1710-2900 MHz: -2 to +2 dBi 3300-3800 MHz: -3 to +3 dBi |
| GPS Gain | L1, L2, L5 GPS: 28 dB at 3 VDC |
| Max Height | 3.22″ | 81.67 mm |
