RTB-51
Military Accessories | Secure Communications

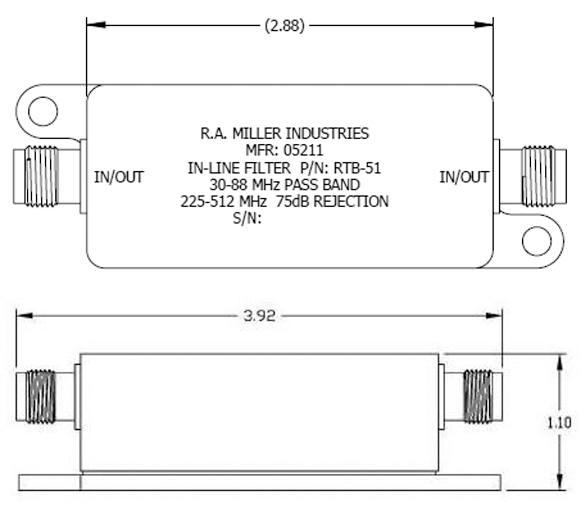

The RTB-51 is a pass band filter operating at 30-88 MHz. This product is used for secure communications.
| Model | RTB-51 |
| Application | Secure Communications |
| Frequency | 30-88 MHz |
| Impedance | 50 Ohms Nominal |
| Insertion Loss | less than 0.5 dB |
| VSWR | 1.2:1 |
| Isolation | greater than 50 dB @ 120 MHz Typical greater than 70 dB @ 180 MHz Typical greater than 75 dB From 225-512 MHz |
| RF Power Handling | 100 Watts CW |
| Connector | “TNC” Female |
| Max. Weight | 0.41 Lbs. |
| Color | CARC Black |
