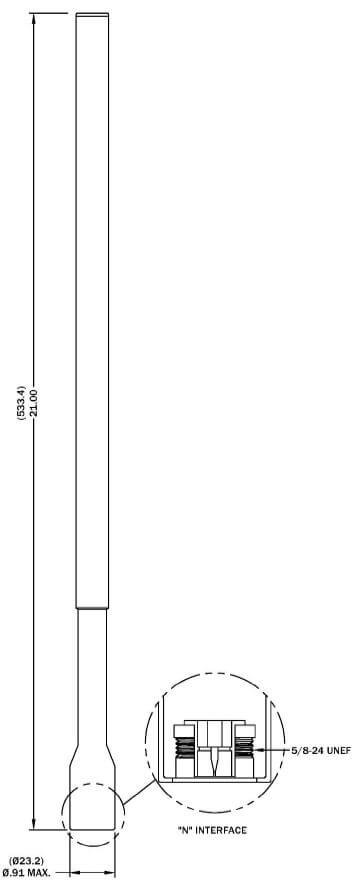

RMH2319B-N UHF manpack antenna drawing

RMH2319B-N

Handheld / Manpack | UHF

The RMH2319B-N is a rugged UHF antenna with a gooseneck for manpack and handheld applications.  It is submersible to 20 meters of water depth.

Product Specifications
ModelRMH2319B-N
Application Antenna Dipole
Frequency 225-512 MHz
Impedance50 Ohms Nominal
VSWR3:1 Maximum
PolarizationVertical
PatternOmni-Directional
RF Power Handling20 Watts CW
Gain-1.0 to +1.0 dBi Typical
Connector“N” Male
Height21 in. (533.4 mm)
Weight0.55 lbs. (0.25 kg)
Available ColorsBlack
Environmental TestingMIL-STD-810G Compliant
