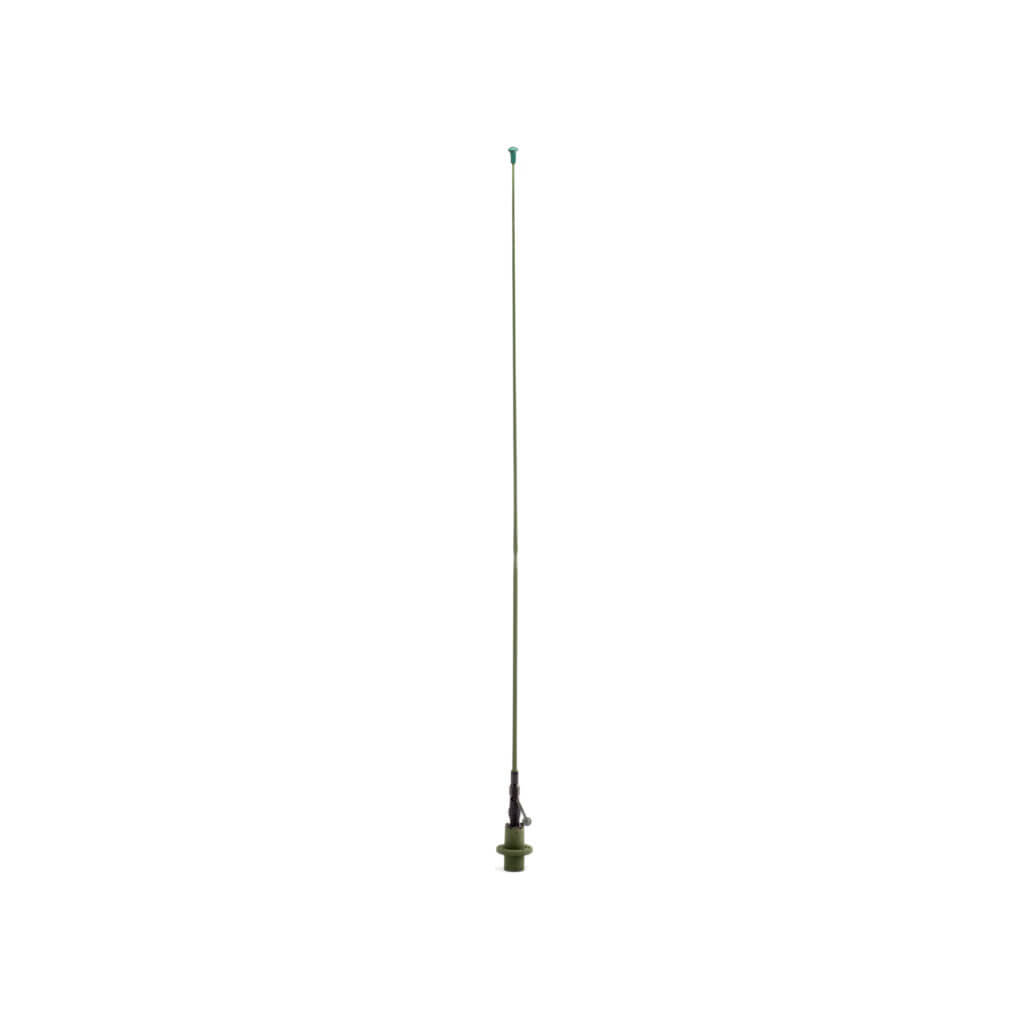

AS-3900A/VRC vehicular antenna
antenna base

AS-3900A/VRC

Vehicular Antenna | VHF

The AS-3900A/VRC antenna is the standard Vehicular Antenna System designed to work with 30-88 MHz radios. This antenna is center-fed and can withstand the application of 20,000 VRMS to its upper section and 10,000 VRMS to its center section without adverse effect to the antenna or the radio.

Product Specifications
ModelAS-3900A/VRC
NSN/Cage5985-01-308-8988
Application Secure Communications
Frequency 30-88 MHz
Impedance50 Ohms Nominal
Gain-7.6 dBmp @ 30 MHz to -1.1 dBmp @ 88 MHz
VSWR3.5:1 Maximum
PolarizationVertical
PatternOmni-Directional
Connector“BNC” Female
RF Power Capacity150 Watt CW
Max. Height110″ (2794 mm)
Max. Weight8.6 lbs. (3.9 kg)
ColorCARC Green
CARC Tan
Environmental TestingMIL-STD-810G Compliant
