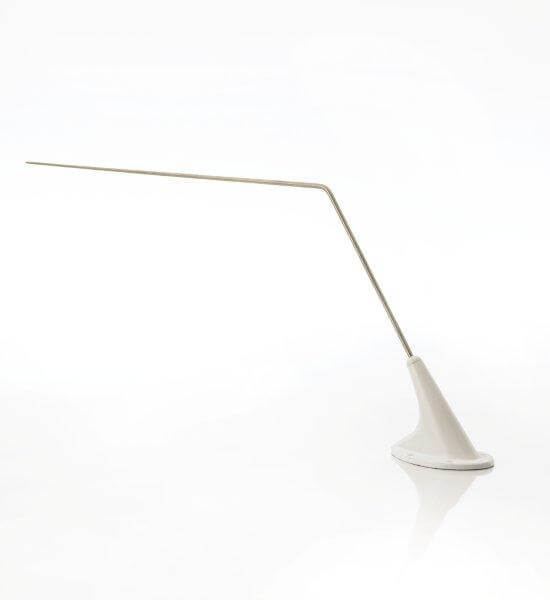

AV-17

Airborne Communications | VHF

The AV-17 is a general aviation antenna designed specifically for mounting to the underside of an aircraft, providing an excellent radiation pattern for air-to-ground communications. It has a 4-bolt mounting base and is low in profile. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.66 lb @ 250 mph. This antenna is a direct replacement for the CI 122.

Product Specifications
ModelAV-17
Application Airborne Communications
Frequency 118 – 137 MHz
Impedance50 Ohms Nominal
VSWR3.0:1 Maximum
PolarizationVertical
PatternOmni-Directional
Connector“BNC” Female
Max Height9.0″
Max Weight8 oz.
RF Power Capacity30 Watts
FAA TSOC37d, C38d
Available ColorsAV-17 Gloss White
AV-17(-GB) Gloss Black
AV-17(-B) CARC Black
Support Documents
Footprint DrawingView
Outline DrawingView

FAA TSO AuthorizationView
GAA Environmental Qualification Form
View
AV-17(-1) Install InstructionsView
AV-17, AV-17(-B) & AV-17(-GB) Install InstructionsView
