Airborne communication antenna - AV-529

AV-529

Airborne Communications | VHF

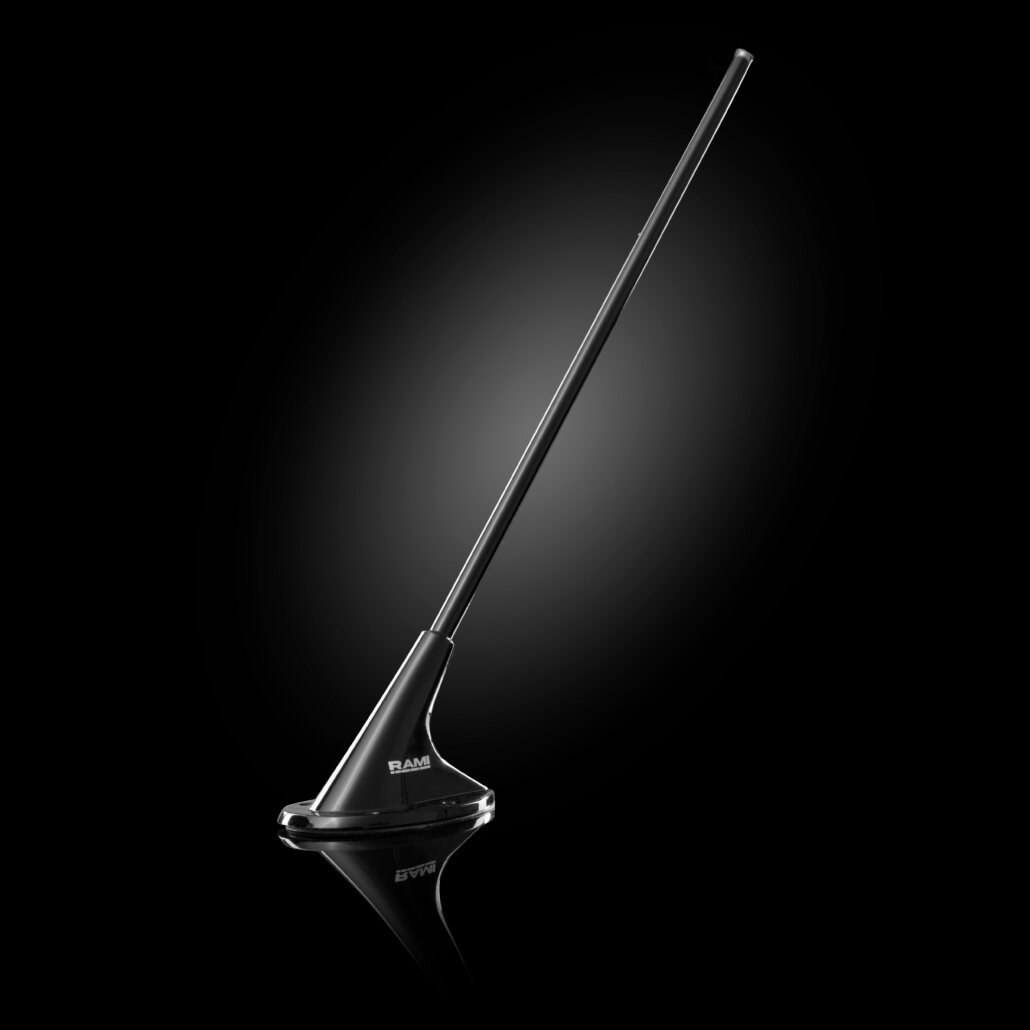

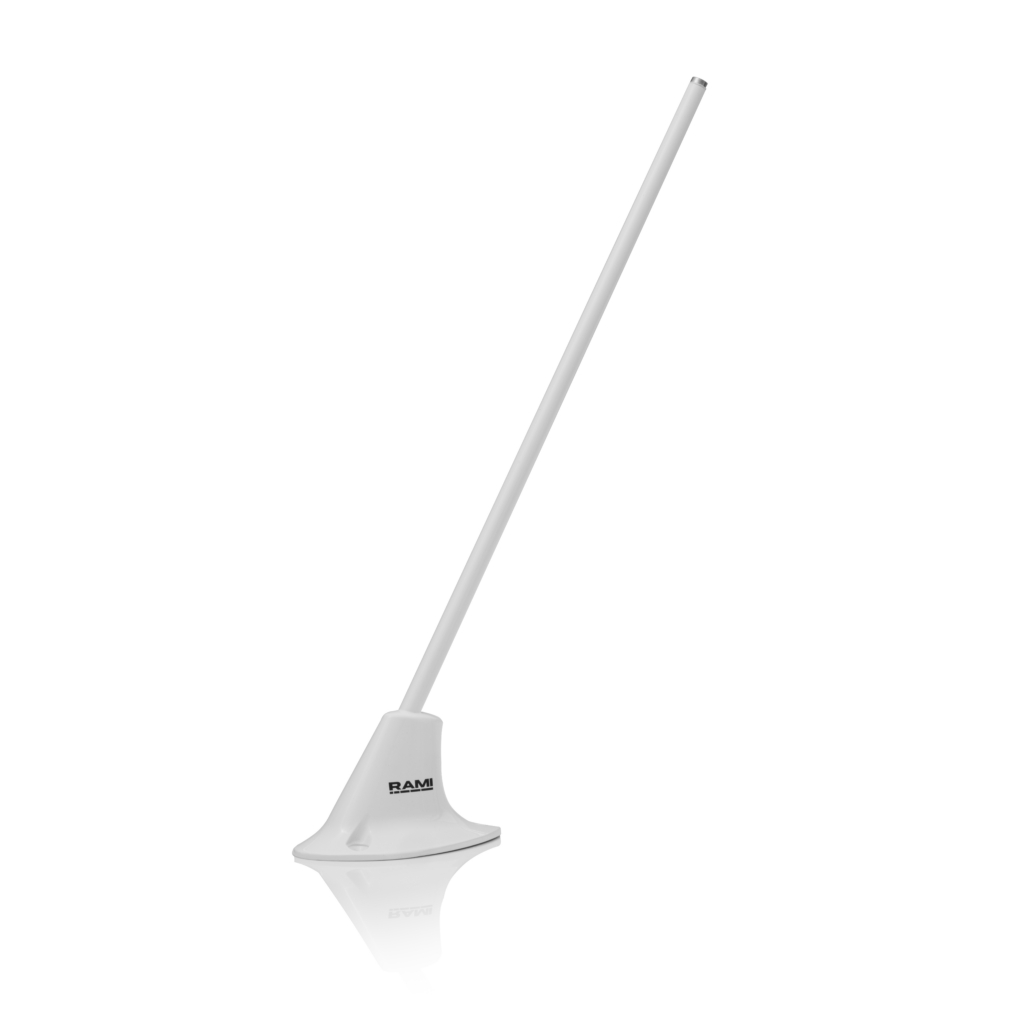

The AV-529 is designed for broadband communications (118-137 MHz). It has a die-cast aluminum base and a uniquely designed radiator encapsulated in a fiberglass whip. The antenna is supplied with a weather-sealing gasket and mounting hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes of 50,000 ft. It has a drag force of 3.43 lb @ 250 mph. The antenna is a direct replacement for the CI 291.

Product Specifications
ModelAV-529
Application Airborne Communications
Frequency 118 – 137 MHz
Impedance50 Ohms Nominal
VSWR1.8:1 Maximum
PolarizationVertical
PatternOmni-Directional
Connector“BNC” Female
Max Height21.56″
RF Power Capacity25 Watts
FAA TSOC37d, C38d
Support Documents
Outline DrawingView

Install InstructionsView

FAA TSO AuthorizationView
