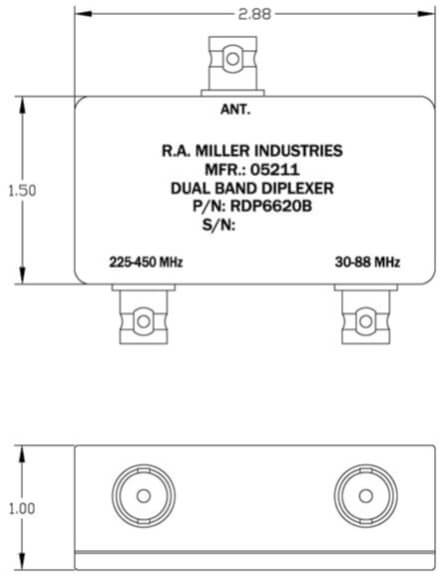

RDP6620B engineering drawing


Antenna Accessory | Diplexer

The RDP6620B is a diplexer with “BNC” Female ports. One port operates at 30-88 MHz and the other port operates at 225-450 MHz. RAMI products are proudly manufactured in the United States.

Product Specifications
Secure Communications
Port 1 Antenna
Port 2 30-88 MHz
Port 3 225-450 MHz
Impedance50 Ohms Nominal
VSWR1.20:1 Typical/1.35:1 Maximum
Insertion Lossless than .5 dB
Isolationless than 35 dB & >40dB Typical
Connector“BNC” Female (All Ports)
Max Weight0.41 Lbs
ColorCARC Black
