ELT antenna

AV-100

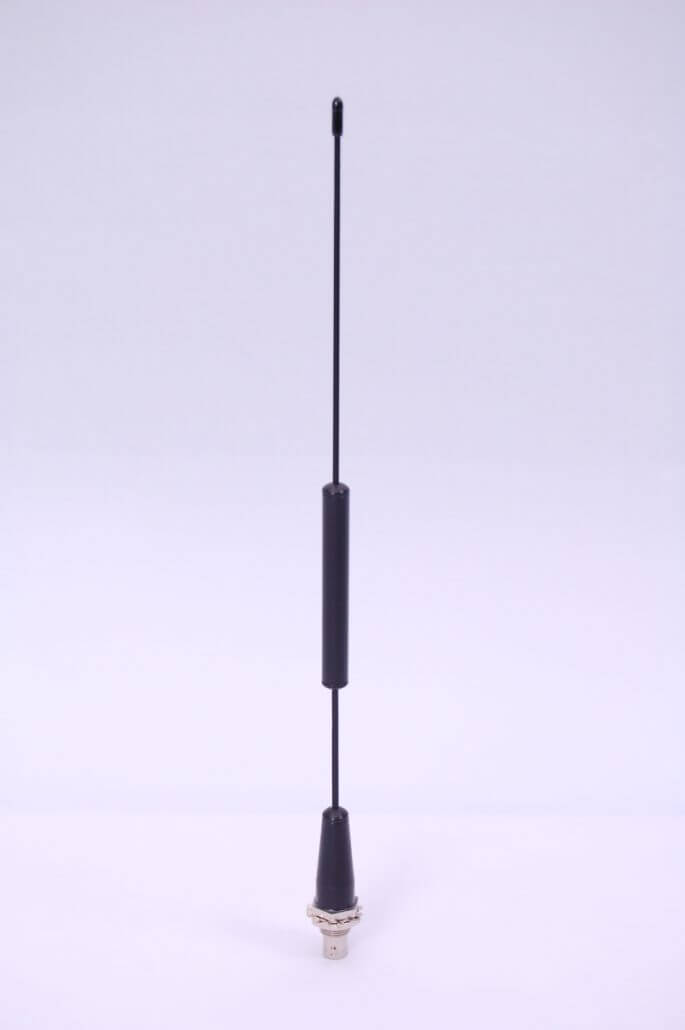

ELT Antenna

This airborne antenna is intended for use with an ELT (Emergency Locator Transmitter) for general aviation. It has a passive two frequency wire whip, designed for low speed aircraft (up to 250 knots). This antenna operates at VHF and UHF frequencies.  It has met DO-160G, Section 8, Category U requirements for robust vibration and is qualified for installation on helicopters with unknown related rotor frequencies.

Product Specifications
Model NumberAV-100
Application Airborne ELT
Frequency 121.5 MHz
406 MHz
Impedance50 Ohms Nominal
VSWR121.5 MHz 2.0:1 Maximum, 406 MHz 1.5:1 Maximum
PolarizationVertical
PatternOmni-Directional
Connector“BNC” Female
FAA TSOC126a
Weight3 oz.
ColorBlack
