AV-927 diplexer

AV-927

Diplexer | Airborne Communications

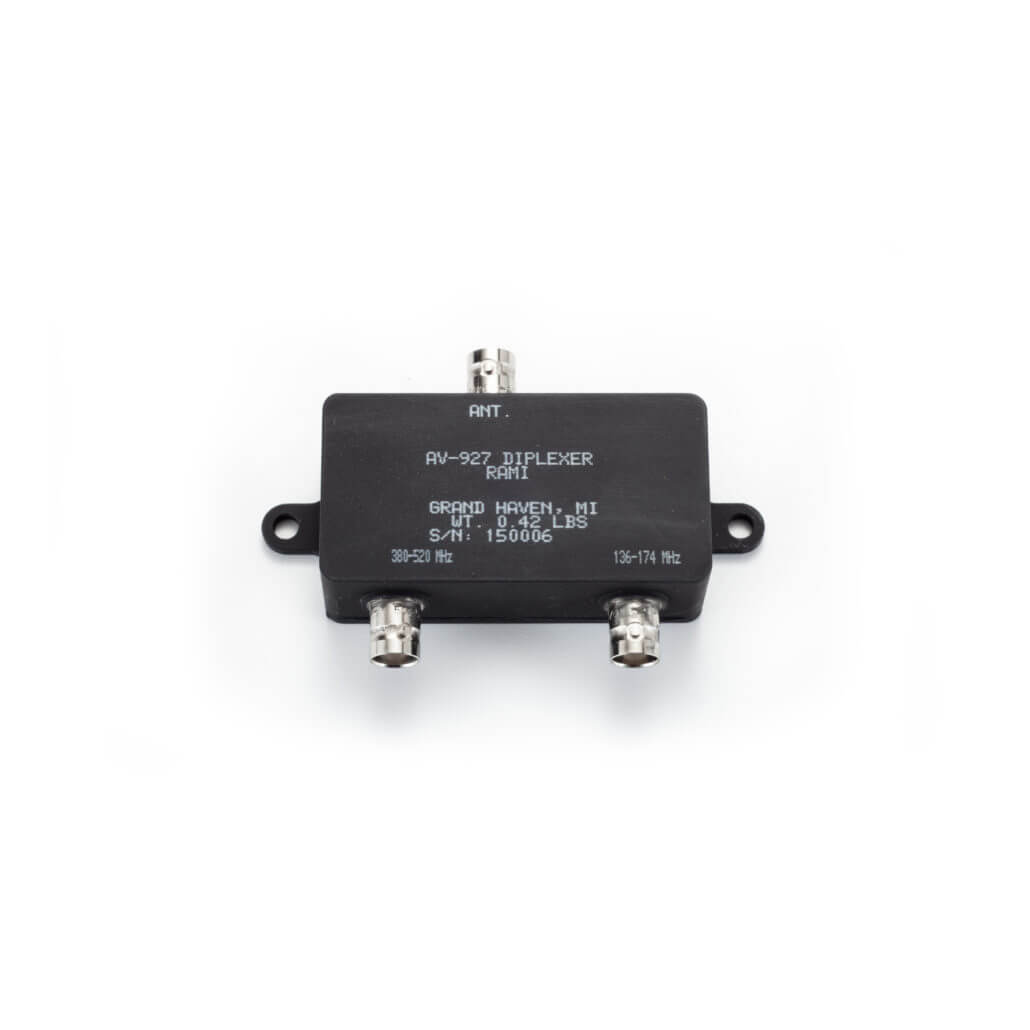

The AV-927 diplexer can be used with airborne multiband FM transceivers. The device is designed to provide two separate frequency band ports (typically going to a multiband transceiver) from a single port multiband antenna.

Product Specifications
ModelAV-927
Application Airborne Communications
Frequency Port 1 Antenna
Port 2 Radio 136-174 MHz
Port 3 Radio 380-520 MHz
Impedance50 Ohms Nominal
VSWR1.3:1
Insertion Lossless than .5 dB
Isolationgreater than 35 dB
Connector“BNC” Female
RF Power Capacity10 Watts VHF, 5 Watts UHF
ColorBlack
Support Documents
Install InstructionsView
