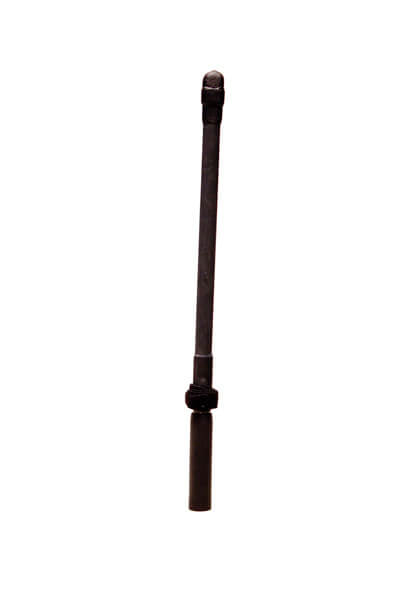

RB0909B manpack antenna


Handheld/Manpack | VHF, UHF

The RB0909B is a military handheld antenna used at VHF and UHF frequencies. It is a rugged, yet flexible blade style antenna operating from 30-512 MHz. It is designed for handheld applications and is submersible to 20 meters of water depth.

Product Specifications
Application VHF/UHF Handheld
Frequency 30-512 MHz
Impedance50 Ohms Nominal
Gain 30-40 MHz >-35 dBi
40-110 MHz >-30 dBi
110-160 MHz >-20 dBi
160-420 MHz > -4 dBi
420-512 MHz > -8 dBi
VSWR3.5:1 Maximum
Connector“TNC” Male
Max Height13.25″
RF Power Capacity8 Watt CW
DC ResistanceInfinite
Max Weight0.25 lbs.
