RDB2020-GPS
Vehicular Antenna | GPS

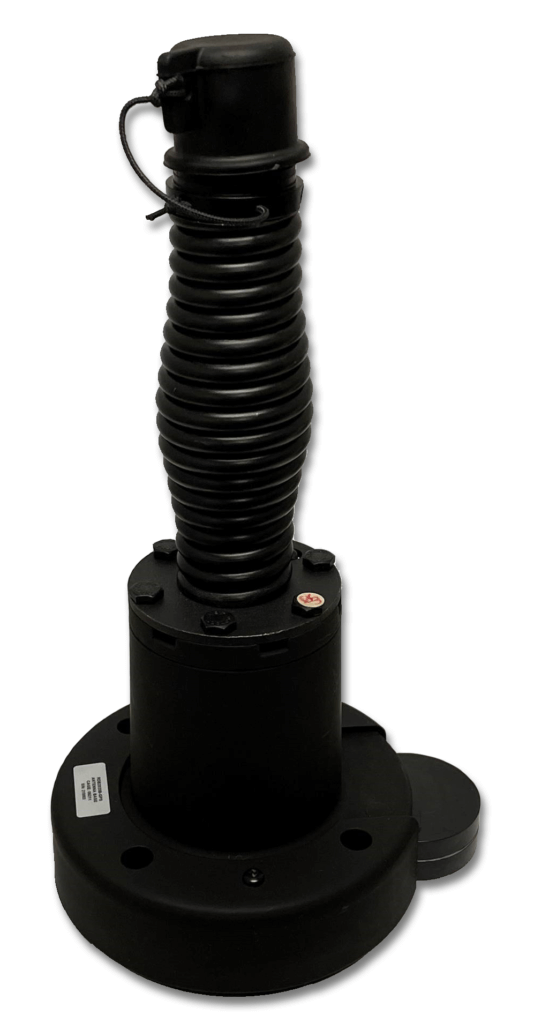

The RDB2020-GPS is a ruggedized multiband vehicular antenna that significantly reduces the number of antennas on the vehicle. The antenna operates with legacy radios for SINCGARS and EPLRS. Multiple frequency inputs may be used simultaneously. This version of the antenna includes an active GPS antenna element integral to the matching base unit. This antenna is fully “oak beam” compliant and can be tied down to a 90 degree bend for storage or during transit.
| Model | RDB2020-GPS |
| Application | Vehicular Communications |
| Antenna Class | VHF: Dipole UHF: Integrated Dipole GPS Navigation |
| Frequency | 30 – 108 MHz 225 – 512 MHz 1575 +/-2 MHz (GPS) |
| Impedance | 50 Ohms Nominal |
| VSWR | 3:1 Maximum 1.5:1 Maximum (GPS) |
| Polarization | Vertical Right Hand Circular (GPS) |
| Pattern | Omni-Directional |
| RF Power Handling | VHF: 75 Watts CW UHF: 75 Watts CW |
| Peak Gain at Horizon | 30-108 MHz: -6.0 to -1.0 dBi (on a 10′ x 10′ ground plane) -10.0 to -1.0 dBi (no ground plane) 225-450 MHz: -1.0 to +2.0 dBi 450-512 MHz: -3.0 to +1.0 dBi -1.0 to +2.0 dBi at +/- 15° from horizon GPS: 28 dB at 3 VDC |
| Clamping Voltage | 200 V at the antenna |
| Impulse Discharge | 20Ka |
| Connector | N Female SMA Female (GPS) |
| Height | 93.25 in. (236.9 cm) |
| Max. Weight | 13 lbs. (5.9 kg) |
| Available Colors | P/N: RDB2020G-GPS CARC Green P/N: RDB2020T -GPS CARC Tan P/N: RDB2020B-GPS CARC Black |
| Mount Hardware Kit Included with Antenna | |
| Tie Down Kit Sold Separately | P/N: RAMI-TDK-1 |
| Environmental Testing | MIL-STD-810G Compliant |
