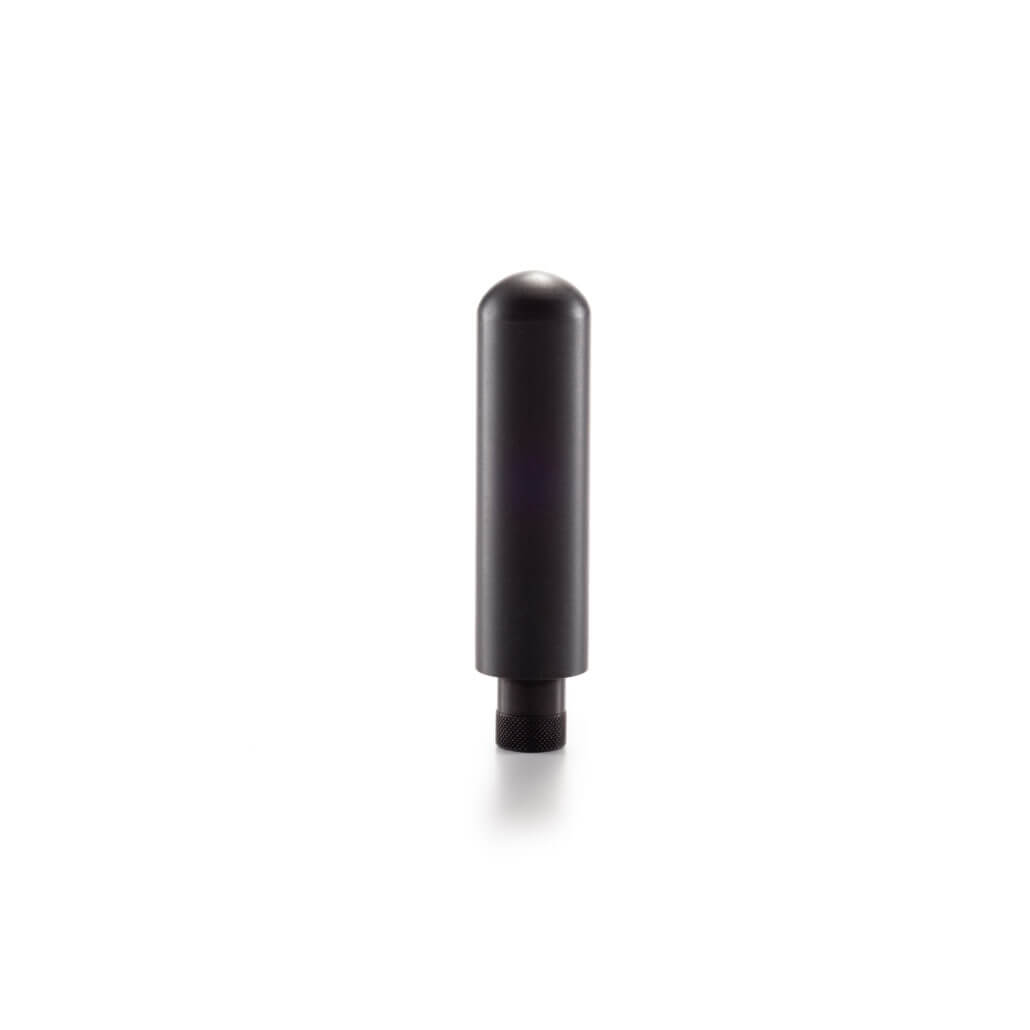

RGPS0214B-A
Military Handheld | GPS
The RGPS0214B-A is a high performance active antenna ideally suited for harsh environments where location is critical. The antennas wide-band, quadrifiliar helix design allows operations at GPS L1 and GLONASS L1 frequencies with a direct fit SMA male connector, IP67 protected. The antenna can be directly mounted on a fixed or handheld radio.
| Model | RGPS0214B-A |
| Application | GPS |
| Frequency | 1565 -1607 MHz |
| Impedance | 50 Ohms Nominal |
| Gain | GPS L1 1.5 dBic @ 90º GL L1 -2.0 dBic @ 90º |
| Amplified Gain | @ 3.0DC: 26.5 dB Typical |
| VSWR | less than or equal to 2.0:1 |
| Polarization | Right Hand Circular |
| Connector | SMA Male w/ IP67 Protection |
| Noise Figure | less than 2.0dB Typical |
| Out-of-Band Rejection | f0 = 1586 MHz f0 ±50 MHz: ≥60dBc f0 ±60 MHz: ≥70dBc |
| DC Voltage | 2.5-5.5V Operating ≤12.0V Survivability |
| DC Current | less than 20mA Typical |
| Max Weight | 0.07 lbs. |
| Color | Black |
