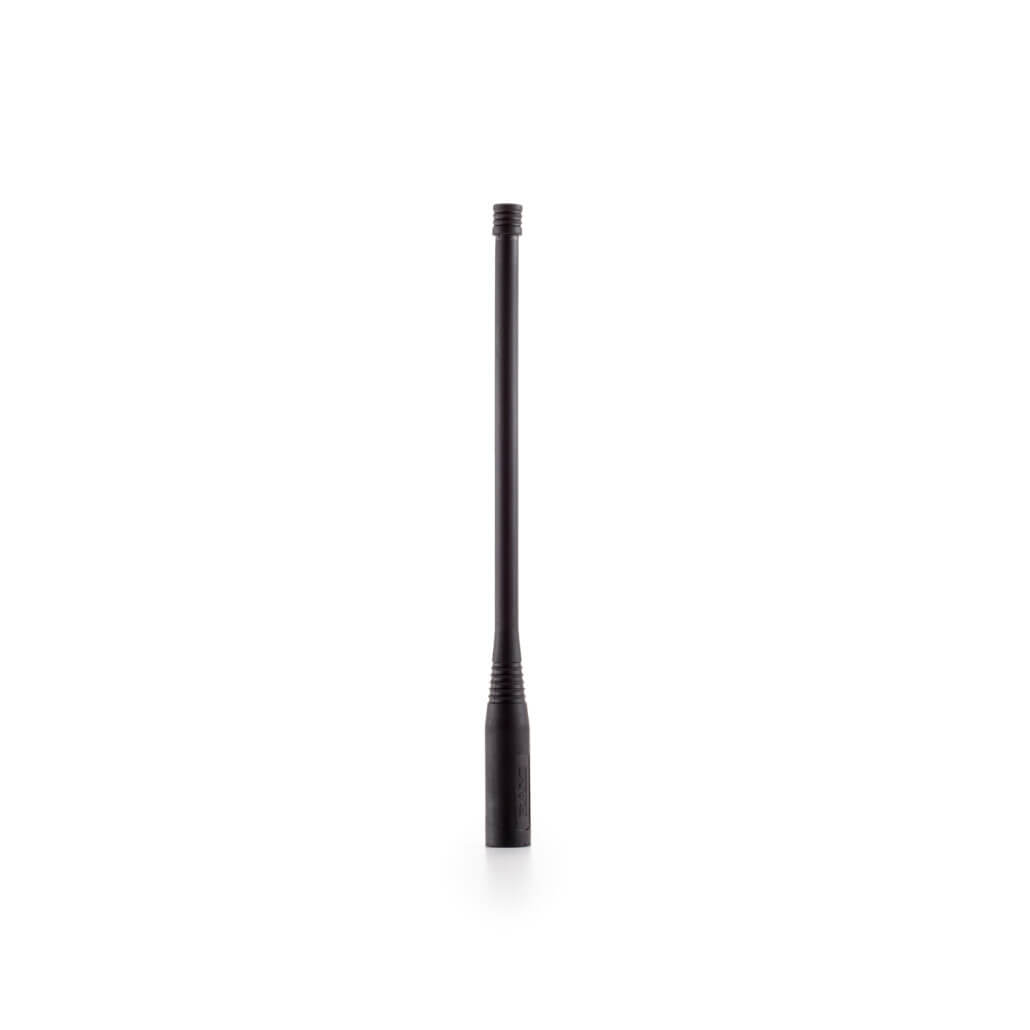

RRD0508B
Handheld/Manpack | UHF
The RRD0508B is a flexible rubber ducky style antenna operating in the UHF band from 225–470 MHz. It is designed for handheld radio applications.
| Model | RRD0508B |
| Application | UHF Handheld |
| Frequency | 225–470 MHz |
| Impedance | 50 Ohms Nominal |
| Gain | 0 dBi to +1 dBi |
| VSWR | 3.0:1 Maximum |
| Polarization | Vertical |
| Pattern | Omni-Directional |
| Connector | “TNC” Male |
| RF Power Capacity | 8 Watt CW |
| Max Height | 9.9″ |
| Max Weight | 4 oz. |
| Color | Black |
| Environmental Testing | MIL-STD-810G Compliant |
