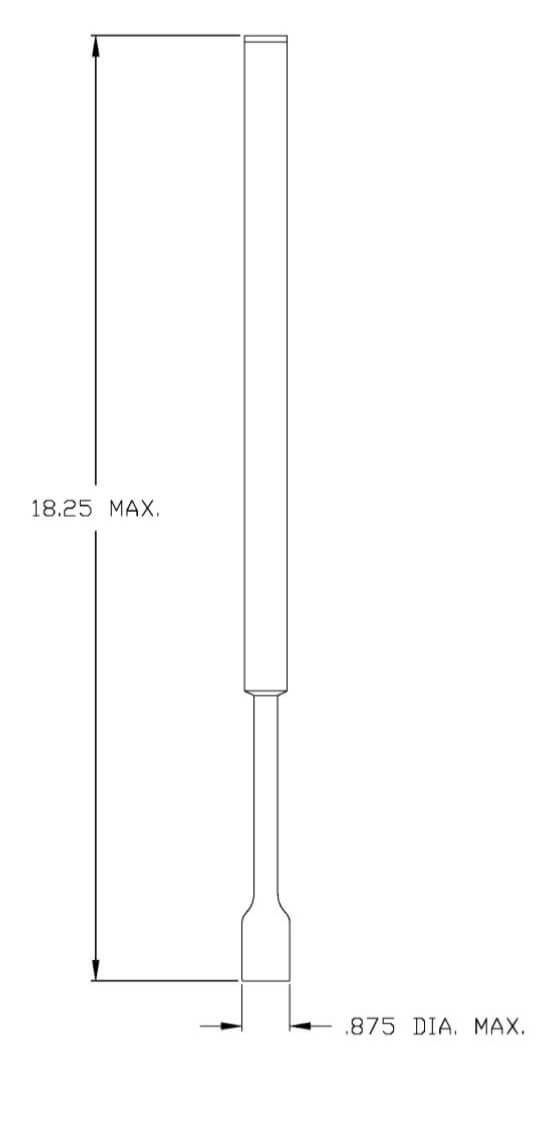

RMH1317B
Handheld/Manpack | L-Band
The RMH1317B is a rugged, manpack style antenna with a gooseneck option that operates from 1200-2110 MHz with L-Band capabilities. Offering superior electrical performance, this design can handle the utmost of rigorous environmental conditions.
| Model | RMH1317B |
| Application | Manpack / Handheld |
| Frequency | 1200-2110 MHz |
| Impedance | 50 Ohms Nominal |
| Gain | +4 dBi Typical |
| VSWR | 2.5:1 Max. 2.0:1 Typical |
| Polarization | Vertical |
| Pattern | Omni-Directional |
| Connector | N Male |
| RF Power Capacity | 20 Watts CW / 26 Watts Peak |
| Color | Black |
| Weight | 0.45 lbs |
| Environmental Testing | MIL-STD-810G Compliant |
