AV-21
Special Use | UHF

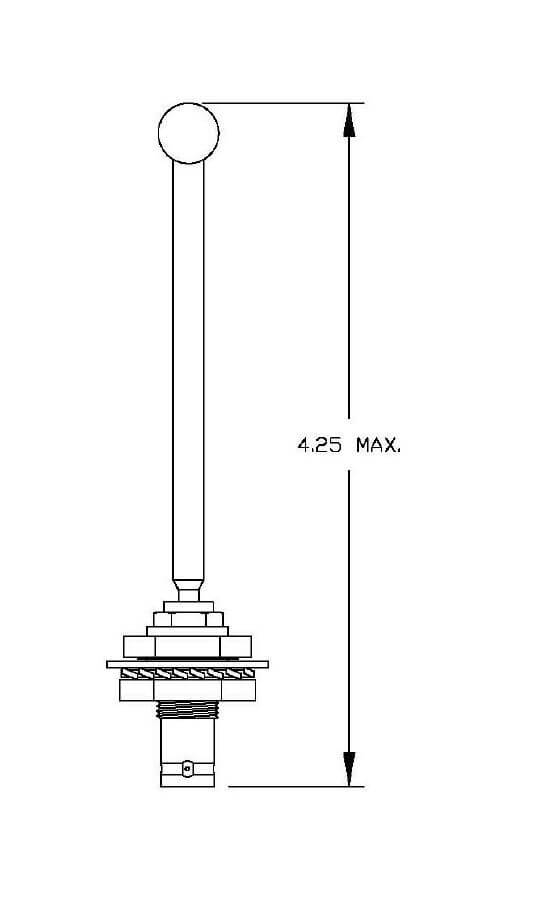

The AV-21 is a rod style broadband radio telephone antenna which utilizes a BNC connector that allows for a smaller mounting hole. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 feet. It has a drag force of 0.41 lbs at 250 mph.
| Model Number | AV-21 |
| Application | Radio telephone |
| Frequency | 764-960 MHz |
| Impedance | 50 Ohms Nominal |
| VSWR | 1.5:1 Max at 764-870 MHz, 2.7:1 Max. at 870-960 MHz |
| Polarization | Vertical |
| Pattern | Omni-Directional |
| Connector | “BNC” Female |
| Max Weight | 1.2 oz |
| RF Power Capacity | 1 KW Peak Pulse at 1% Duty Cycle |
| Install Instructions | View |
