AV-520

VOR/LOC/GS Antenna

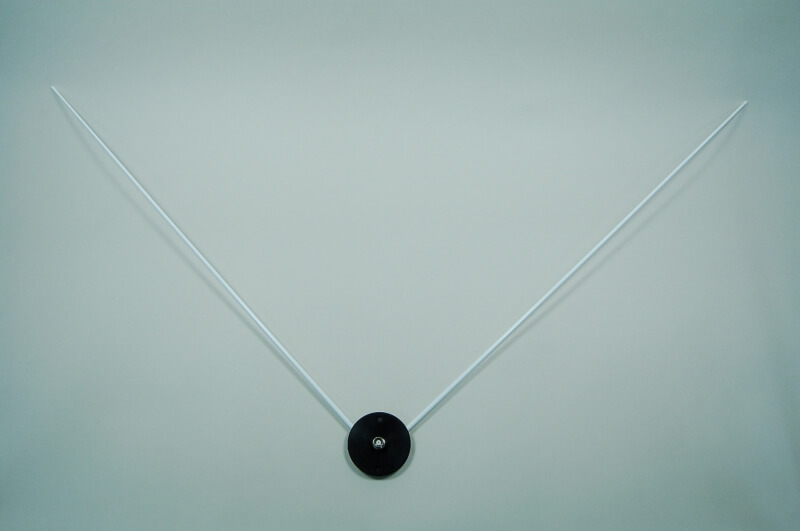

The AV-520 is a “V” style VOR/LOC/GS antenna utilizing detachable painted stainless steel elements and internal balun transformer. The antenna is rated at speeds up to 350 mph and altitudes up to 50,000 feet. It is a direct replacement for the CI 159C.

Product Specifications
ModelAV-520
Application VOR/LOC/GS Receive Only
Frequency 108 – 118 MHz
328 – 336 MHz
Impedance50 Ohms Nominal
VSWR3.0:1 Max. 108-118 MHz
2.0:1 Max. 328-336 MHz
PolarizationHorizontal
PatternOmni-Directional
Connector“BNC” Female
Max. Weight0.50 lbs.
FAA TSOC34e, C36e, C40c
Support Documents
FAA TSO AuthorizationView
Installation InstructionsView
GAA Environmental Qualification Form
View
Outline DrawingView
