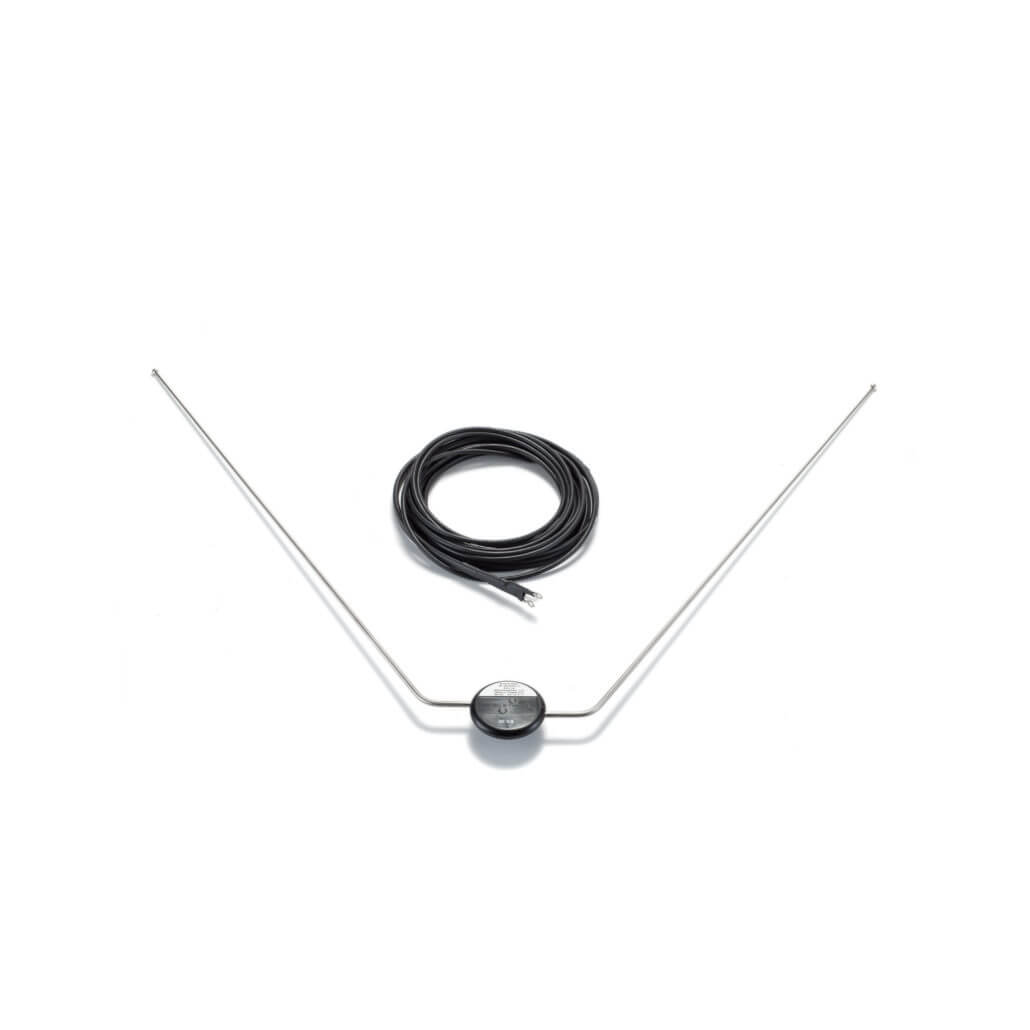

AV-12L antenna and cable

AV-12L

VOR/LOC/GS Receive Only Antenna

The AV-12 is a VOR/LOC/GS receive only antenna which uses a highly efficient technique of molding the elements directly into a high-impact thermo-setting bakelite center insulator. The stainless steel elements are ground to close tolerances to provide a low profile. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.92 lb @ 250 mph. The AV-12L operates at both UHF and VHF frequencies. A 25-ft. transmission line with integral balun transformer is also supplied.

Product Specifications
ModelAV-12L
Application VOR/LOC/GS Receive Only
Frequency 108 – 118 MHz
328 – 336 MHz
Impedance50 Ohms Nominal
VSWR2.2:1 Maximum
PolarizationHorizontal
PatternOmni-Directional
ConnectorThreaded studs to accept transmission line assembly with integral balun transformer
Max. Weight5.5 oz. (14 oz. with cable)
Width Across Tips29.5″
FAA TSOC40c
