VOR/LOC/GS AV-532 antenna


VOR/LOC/GS Receive Only Antenna

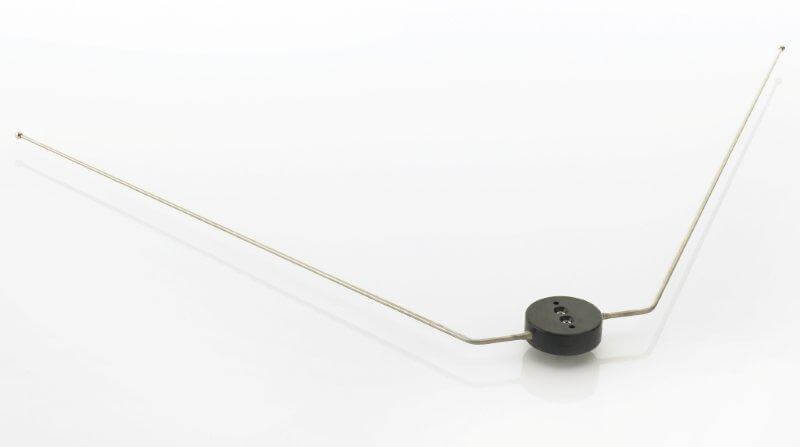

The AV-532 is a VOR/LOC/GS receive only antenna. It consists of taper ground high-strength 17-7PH stainless steel elements to reliably withstand vibration and wind loads. The insulators are weather-sealed compression-molded bakelite with the mounting holes provided. The unit may be mounted with the V pointed either forward or aft. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 3.42 lb @ 250 mph.

Product Specifications
Application VOR/LOC/GS Receive Only
Frequency 108-118 MHz
328-336 MHz
Impedance50 Ohms Nominal
VSWR2.0:1 Maximum
ConnectorThreaded studs to accept transmission line assembly with integral balun transformer (not included)
RF Power CapacityReceive Only
Max. Weight11 oz.
Support Documents
Footprint DrawingView
Outline DrawingView

FAA TSO AuthorizationView
Install InstructionsView
GAA Environmental Qualification Form
